Aim-TTi QL564T | Triple Output Precision DC Power Supply | 2 x 56V/2A or 25V/4A plus 1-6V/3A
Aim-TTi's QL564T combines two 56V/2A or 25V/4A precision main outputs with an auxiliary rail variable from 1V to 6V at 3A. Controlled from the front panel, it suits circuit designers who need higher-voltage rails alongside a logic supply in a compact bench footprint.
Key features
- Two main outputs, each 56V/2A or 25V/4A
- Auxiliary output variable 1.00V to 6.00V at 3A
- Voltage and current metering selectable on the auxiliary output
- Precision linear regulation, very low noise
- Compact footprint with modular width for rack mounting
- Specifications
- Features
- Downloads
| Part Number | QL564T |
| Brand | Aim-TTi |
| Outputs | 3 |
| Regulation | Linear, precision |
| Main Outputs | 2 x 56 V / 2 A or 25 V / 4 A |
| Auxiliary Output | 1.00 to 6.00 V at 3 A |
| Protection | OVP and OCP trips |
Advanced user interface with numeric and rotary control
Multiple voltage/current ranges for increased flexibility
Multiple non-volatile memories for power supply set-ups
Switchable remote sense provides perfect load regulation
Comprehensive protection including OVP and OCP trips
Compact bench footprint; modular width for rack mounting
2x(56V/2A) & 1x(6V/3A) or (25V/4A) & 1x(6V/3A)

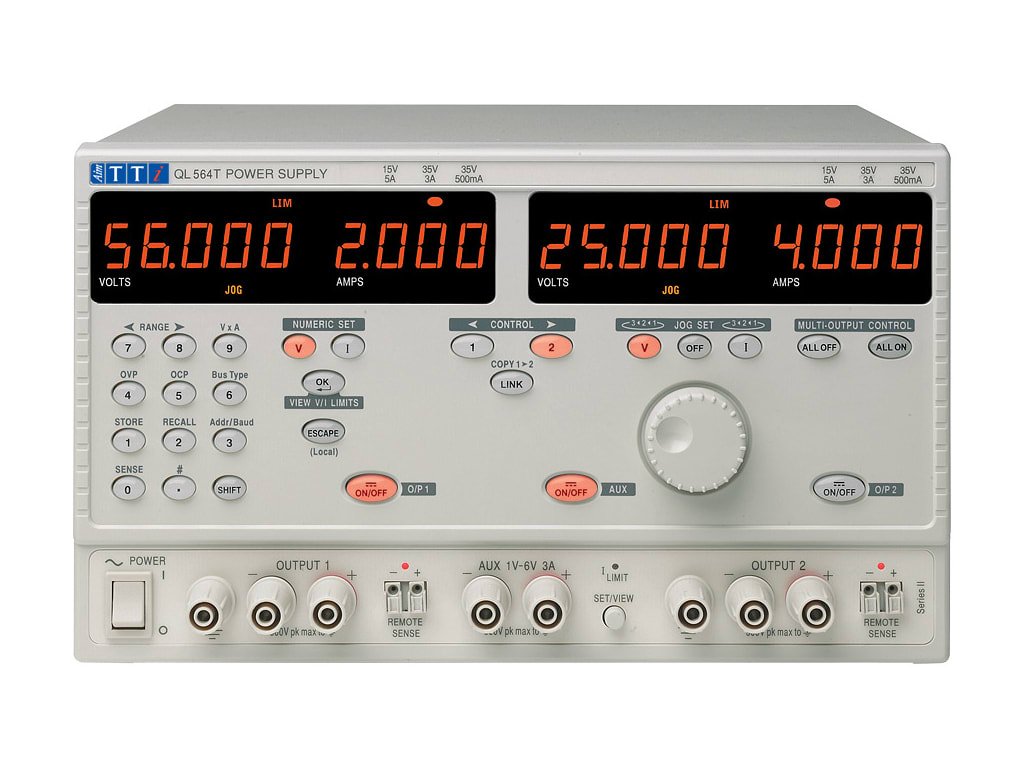

TTi QL564T SII Dual QL564 plus 1-6V/3A Linear Regulated Precision Power Supply
Advanced dc power supply range, single or triple output
Very high precision, very low noise, excellent dynamics
