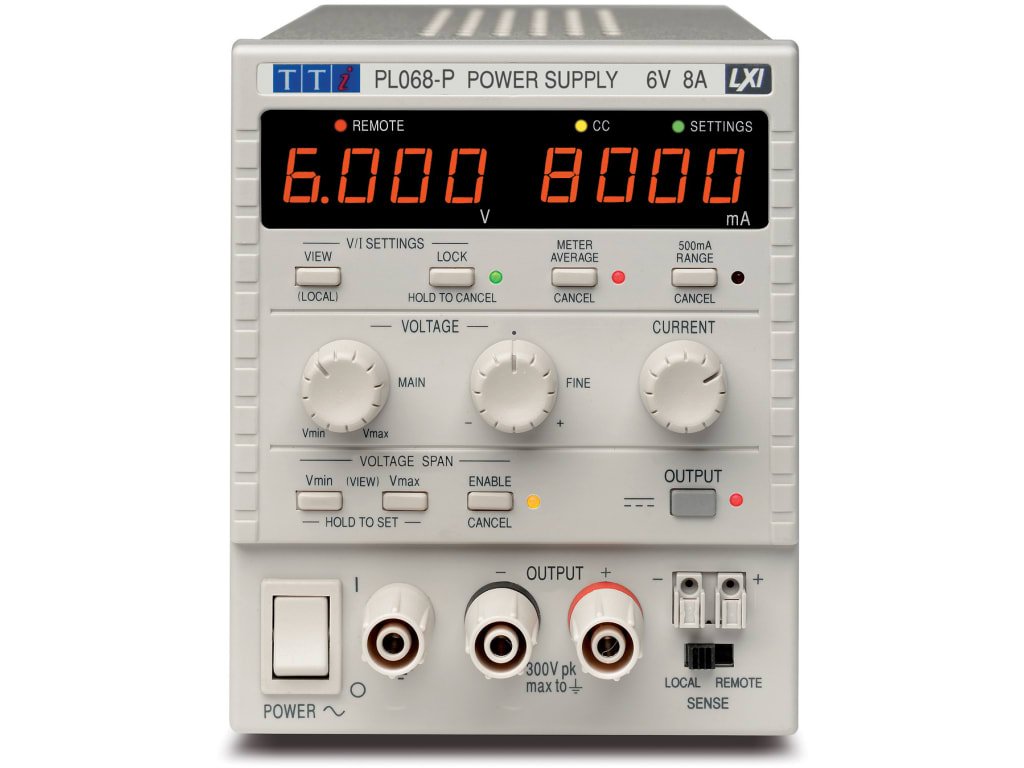

Aim TTi PL068-P (G) Single | 0-6V/0-8A USB/RS232/LAN(LXI)/Analog/GPIB

Name: Aim TTi PL068-P (G) Single | 0-6V/0-8A USB/RS232/LAN(LXI)/Analog/GPIB
Brand: Aim Tti
SKU: PL068-P(G)
Availability: OutOfStock

Part Number : PL068-P(G)

The most recent linear regulated power supply series from TTi is called the New PL-P Series, and it is bus programmable. The New PL-P series adds complete remote control capabilities while maintaining all of the manual control features of the New PL series. Its user-friendly manual controls are still available for bench top applications, but its ultra-compact rack-modular design makes it excellent for rack mounted system applications.

Availability: Sold out

Free Kuwait shipping available

Detailed Description
Specifications
Features
Downloads

New PL & New PL-P Series Single, Dual and Triple Output PSUs

Single, dual or triple output models
Models from 6V/8A up to 60V/1.5A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and 'view limits' button
Selectable remote sense terminals
Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
High current low voltage output on triple output model

Note

RM460 rack mount kit 493-522 caters for up to four single output units or two dual output units or any combination. Total height 4U includes ventilation spaces above and below, together with blanking panels for unused positions.

Approvals

EN61010-01 (Safety); EN61326 (EMC)

Supplied with

user manual and mains lead

Aim-TTi PL-P Series Bench Power Supply, 94W Power Rating, 0 to 8 A Output Current - PL068-P

This bench power supply from TTi is a programmable DC power supply with a power rating of 94W. Offering linear power supply functionality, it is a versatile and reliable option for various applications in the automation, electronics, electrical, and mechanical industries.

Features & Benefits

â€¢ Programmable DC power supply
â€¢ 94W power rating for added safety
â€¢ Precise voltage and current control
â€¢ Dual display for easy monitoring

Applications

â€¢ Ideal for voltage and current testing
â€¢ Suitable for powering electronic circuits

Can it provide precise voltage and current control?

Yes, this bench power supply offers precise control over both voltage and current for accurate testing and powering of electronic devices.

Will it be suitable for powering various electronic circuits?

Yes, it is designed to provide reliable power to a wide range of electronic circuits, making it ideal for different applications.

Is it easy to monitor the output with the dual display feature?

With the dual display feature, users can easily monitor both voltage and current levels simultaneously for efficient testing and operation.

Can it be used in laboratory settings?

Yes, this bench power supply is perfect for laboratory applications, offering the necessary power and control for testing and experimentation.

How versatile is this power supply in terms of applications?

This power supply is versatile enough to be used in various applications within the automation, electronics, electrical, and mechanical industries.

Supplied with

Test Bridge Logging and sequencing software

Multi instrument control

Logging to table and graph format

Timed sequence control across all instruments and channels

USB, LAN and RS232 compatible

Dimensions	Single output models - 107mm x 131mm (1/4 rack 3U) x 315mm, Dual output model - 214mm x 131mm (1/2 rack 3U) x 288mm Triple output model - 321mm x 131mm (3/4 rack 3U) x 288mm (sizes exclude feet, knobs and terminals).
Operating Temperature	+5oC to +40oC, 20% to 80% RH
Storage Temperature	-40oC to + 70oC
Voltage	230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II
Weight	Single output models - 4·9kg; Dual output model - 8.6kg; Triple output model - 12.8kg

Analog remote control of V and I
Front and rear terminals
Selectable remote sense terminals
Ultra-compact size of quarter-rack 3U
High power density - up to 90 watts per output
Manual control features as per New PL SeriesHigh performance linear regulated power supplies
0 to 6V at 0 to 8A
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB
LAN Interface conforms with LXI standard
Interfaces are opto-isolated from outputs
IVI Driver supplied

Aim TTi PL068-P (G) Single | 0-6V/0-8A USB/RS232/LAN(LXI)/Analog/GPIB

DOWNLOAD CATALOG

Aim TTi PL068-P (G) Single | 0-6V/0-8A USB/RS232/LAN(LXI)/Analog/GPIB

New PL & New PL-P Series Single, Dual and Triple Output PSUs
