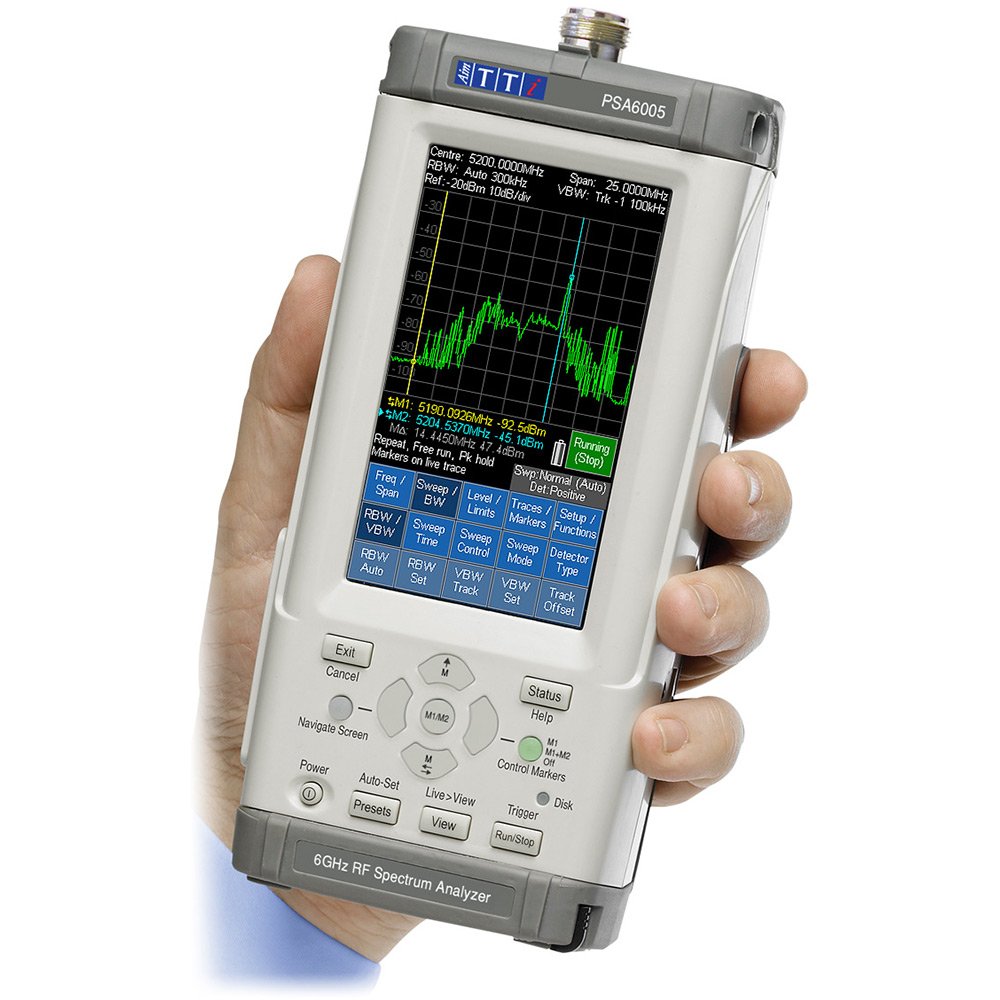

Aim TTi PSA6005 Handheld RF Spectrum Analyzer 6.0GHz

Name: Aim TTi PSA6005 Handheld RF Spectrum Analyzer 6.0GHz
Brand: AIM TTi
SKU: PSA6005
Availability: OutOfStock

Part Number : PSA6005

The Aim-TTi PSA6005 Handheld RF Spectrum Analyzer is a versatile portable radio frequency analyzer with a frequency range of 10MHz to 6000MHz. Furthermore, the Aim-TTi PSA6005 Handheld RF Spectrum Analyzer has a resolution bandwidth of 300Hz to 10MHz (1:3:10) and a typical noise floor of -120dBm at -40dBm ref. level/ 10kHz RBW. It has a frequency counter with a resolution of 10Hz, as well as several modes, including Zero Span mode with AM and FM audio demodulation and the following trace modes: Peak Hold, Average, Normal

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	Better than +/- 1 ppm at 20°C
Battery Life	Greater than 3 hours continuous
Battery	Li-ion 3.7V 3000mA-hr
Dimensions	192mm high x 92mm wide x 49mm deep (height excludes RF input connector)
Display	4.3 inch (10.9 cm) backlit TFT LCD, 480 x 272pixels total, 16 colours, resistive touch screen.
Frequency (Hz)	10 MHz to 6000 MHz
Resolution	100 Hz at any frequency
Weight	580 grms

A portable radio frequency analyzer with a diverse set of capabilities.
The frequency range is from 10MHz to 6000MHz.
Resolution bandwidths ranging from 300Hz to 10MHz (1:3:10).
At -40dBm ref. level/ 10kHz, the typical noise floor is -120dBm.
Frequency counter with a resolution of 10Hz.
AM and FM audio demodulation in Zero Span mode.
Normal, Peak Hold, and Average trace modes are available.
The Live, View, and Reference traces are shown in different colours.
TFT touchscreen display (4.3").
View twin markers with absolute and difference value readouts.
View measurements in dBm, dBV, mV, and W.
Preset frequencies.
Intelligent marker movement with peak tracing.
Auto-Find function: sets sweep parameters based on the highest detected signal.
Storage of independent states.
Waveforms, set-ups, and screens can be saved indefinitely.
Internal memory is 1.8GB.
