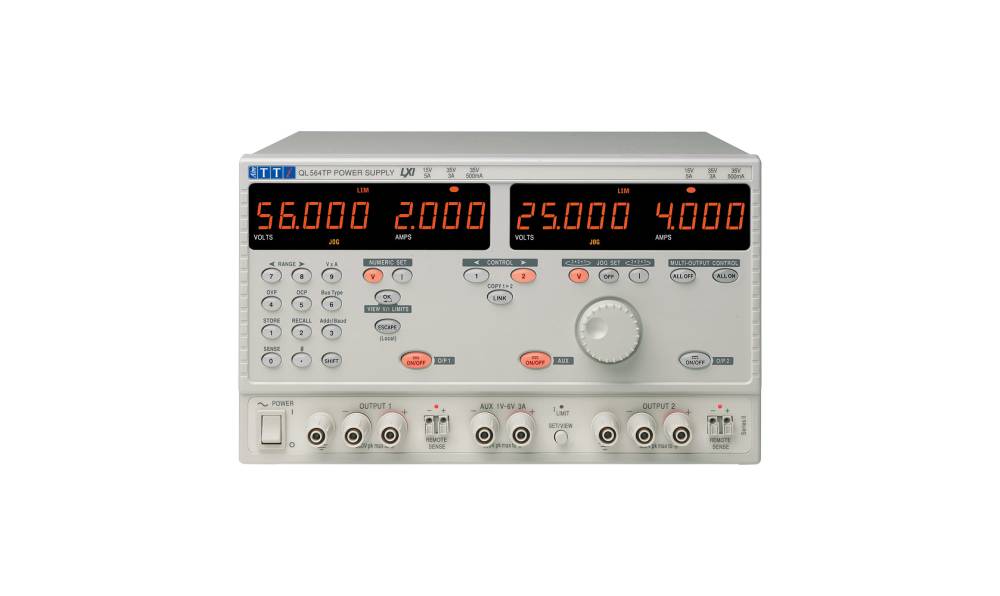

Aim-TTi QL Series II Series Digital Bench Power Supply, 0 → 56V, 0 → 2A, 3-Output, 242W

Name: Aim-TTi QL Series II Series Digital Bench Power Supply, 0 → 56V, 0 → 2A, 3-Output, 242W
Brand: Aim Tti
SKU: QL564TP-G
Availability: OutOfStock

Part Number : QL564TP-G

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aim-TTi precision linear DC power supplies offer single and triple output configurations, delivering unrivaled accuracy, resolution, stability, and low noise performance. Featuring an advanced user interface for superior control, these power supplies include USB, LAN, RS-232, or GPIB interfaces for versatile connectivity. Multiple output ranges provide greater flexibility, making them ideal for a wide range of applications.

The maximum power is 242W
The terminals are available at the front and rear
The input is 500 max
The size is 280 x 160 x 290 mm
The weight is 10.6 kg

Brand	Aim-TTi
Series	QL Series II
Model Number	QL564TP SII
Number of Outputs	3
Supply Voltage	115 V ac, 230 V ac
Output Voltage	0 → 56 V, 0 → 25 V, 1 → 6 V
Output Current	0 → 2 A, 0 → 4 A, Aux 3 A
Power Rating	242 W
Number of Displays	4
Bench Power Supply Type	Programmable DC Power Supply
Type	Linear
Digital/Analogue	Digital
Input Connector	IEC 320
Output Connector	Binding Post Terminal
Minimum Temperature	+5 °C
Maximum Temperature	+40 °C

Aim-TTi QL Series II Series Digital Bench Power Supply, 0 → 56V, 0 → 2A, 3-Output, 242W

DOWNLOAD CATALOG

QL564T SII Catalogue - Laboratory DC Power Supplies A700000011374529

QL564T SII Manual - QL Series II A700000011374541

QL564T SII Line Drawing - QL Series Three Output A700000011374545
