Aim-TTi TG5011A | Function/Arbitrary/Pulse Generator | 50MHz, One Channel

Name: Aim-TTi TG5011A | Function/Arbitrary/Pulse Generator | 50MHz, One Channel
Brand: Aim Tti
SKU: TG5011A
Availability: OutOfStock

Part Number : TG5011A

With a 50MHz upper limit, the Aim-TTi TG5011A is the faster single-channel model in the TG501xA series. It combines function, arbitrary and pulse generation with extensive internal and external modulation, and includes Waveform Manager Plus for Windows for creating custom waveforms.

Key features

Single channel from 0.001mHz to 50MHz
Sine, square, ramp, pulse, sin(x)/x, noise, exp, log and PRBS
Arbitrary waveforms of up to 128K points at 125MS/s
AM, FM, PM, PWM, FSK, BPSK, Sum and PRBS modulation
Waveform Manager Plus software included
USB and LXI LAN; GPIB optional

Availability: in stock

Detailed Description
Specifications
Downloads

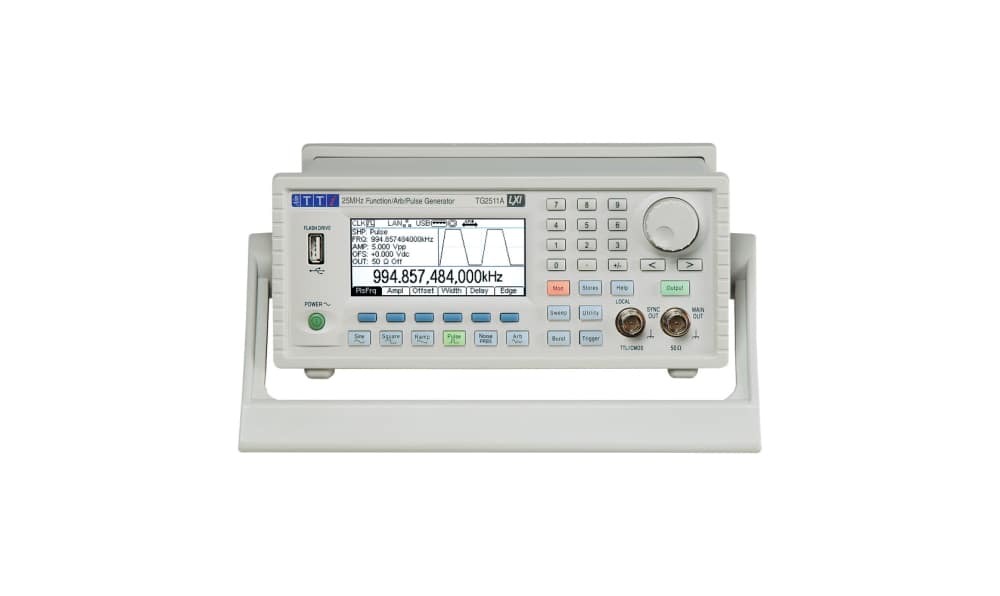

Aim-TTi Advanced Single Channel Function/Arbitrary/Pulse Generators TG5011A, TG2511A

The Aim-TTi TG5011A and TG2511A are state-of-the-art single channel DDS-based function generators. The 50MHz TG5011A offers high bandwidth and sampling speed, which enables it to significantly outperform many generators in its price range. The 25MHz TG2511A incorporates a similar feature set while offering a still lower cost to users with lower frequency requirements.

0.001mHz to 50MHz (TG5011A) or25MHz (TG2511A) range, 14 digits or 1μHz resolution
20mV to 20V pk-pk output from 50Ω, available over the full frequency range - multi-function aux-out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum, PRBS
Waveform Manager Plus for Windows editing software included
Programmable via USB and LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle

Part Number	TG5011A
Brand	Aim-TTi
Channels	1
Frequency Range	0.001 mHz to 50 MHz
Resolution	14 digits or 1 uHz
Arbitrary	Up to 128K points at 125 MS/s
Output	20 mV to 20 V pk-pk from 50 Ohm
Interfaces	USB, LAN (LXI)
GPIB	Optional
