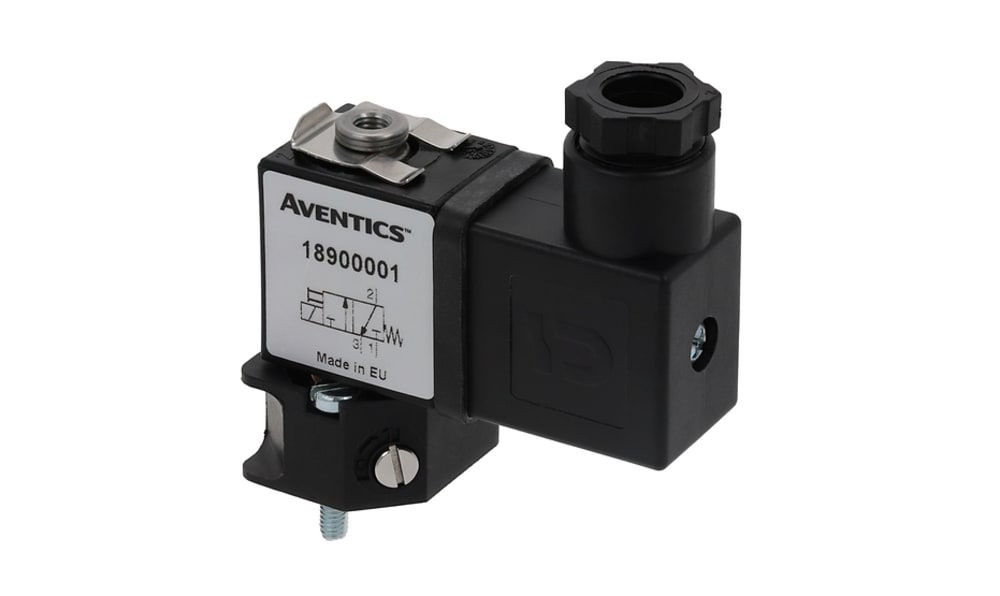

ASCO 18900001.12/DC, Solenoid Valve , 3 port(s) , NC, 12 V, 3/4in

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ASCO 18900001.12/DC, Solenoid Valve , 3 port(s) , NC, 12 V, 3/4in

Name: ASCO 18900001.12/DC, Solenoid Valve , 3 port(s) , NC, 12 V, 3/4in
Brand: Asco
SKU: 18900001.12/DC
Availability: OutOfStock

Part Number : 18900001.12/DC

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is a pinnacle of reliability and efficiency in the field of fluid control. Designed as a direct-operated, 3-way valve, it offers both normally closed and normally open configurations, thereby providing versatility for various applications. With the ISO 15218 interface, it seamlessly integrates with standard systems, ensuring straightforward installation. The AC/DC interchangeability feature of the solenoid operator eliminates the need for disassembly, enhancing maintenance ease and operational flexibility. Boasting a compact and lightweight design, this valve is particularly suited for mounting on subbases, making it ideal for space-constrained environments. The robust construction, featuring high-quality materials ensures durability, while adherence to EU directives ensures compliance with safety and environmental standards. Whether used in industrial automation or HVAC applications, this solenoid valve promises superior performance and dependability.

Compact design enhances installation flexibility in tight spaces
Manual operator included as a standard feature for easy override
AC/DC solenoid interchangeability allows for versatile use without valve disassembly
M12 connection options provide visual indication and improved safety
Robust construction guarantees long-lasting performance in demanding environments
Compliance with EU directives ensures adherence to safety standards
Available in pad-mounted versions to facilitate valve piloting applications
Flexible installation options support both single and joinable subbases

Brand	Asco
Supply Voltage	12 V
Number of Ports	3
Connection Size	3/4in
Connection	3/4 in G
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas
Type	Solenoid
Orifice Diameter	1.2mm
Body Material	Polyamide
Series	189
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Flow Factor Kv	1.2L/min
