ASCO 18900032.110/DC, Solenoid Valve , 3 port(s) , NC, 110 V, 3/4in

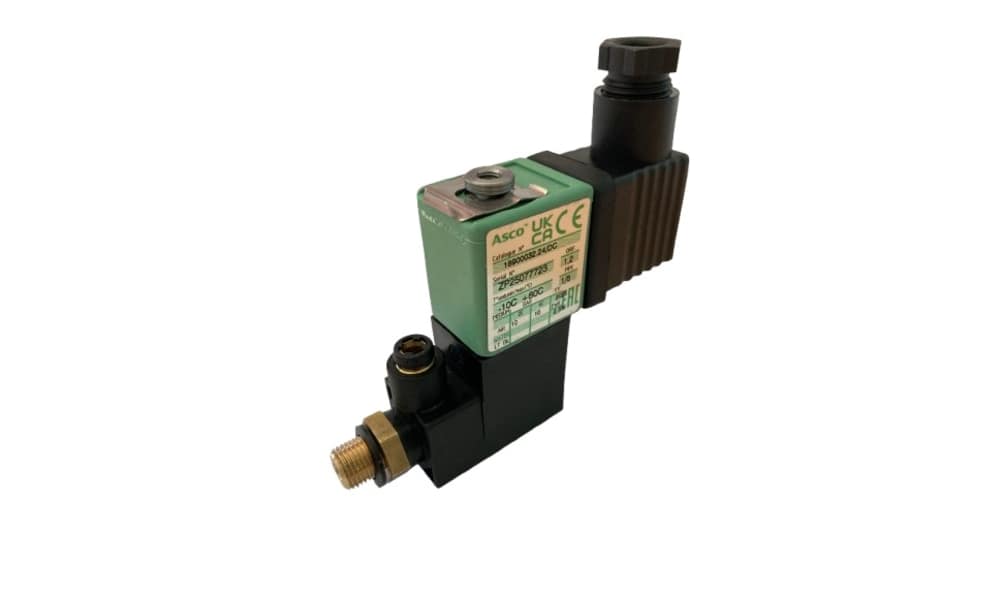

Name: ASCO 18900032.110/DC, Solenoid Valve , 3 port(s) , NC, 110 V, 3/4in
Brand: Asco
SKU: 18900032.110/DC
Availability: OutOfStock

Part Number : 18900032.110/DC

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is designed to optimise performance in a variety of industrial applications. The solenoid valve features a compact and lightweight design, which allows for effortless installation on either single or joinable subbases. With a robust construction, it excels in maintaining reliable operation even under challenging conditions. The valve meets all relevant EU directives, ensuring compliance with safety and environmental standards. Its quick response time and efficient fluid control make it an ideal choice for critical processes, while the interchangeable solenoid operator offers flexibility for diverse operational needs.

Compact size allows for flexible installation in space-constricted environments
Low weight supports easy handling and assembly on various mounting configurations
Designed to operate effectively across a range of operating pressures
AC/DC interchangeability enhances adaptability across different energy systems
Offers manual operation as a standard feature for added control
Electrical enclosure is rated IP65 for protection against dust and water ingress
Coil insulation class F ensures reliable performance under thermal stress
Materials are chosen for compatibility with a variety of fluids

Brand	Asco
Supply Voltage	110 V
Number of Ports	3
Connection Size	3/4in
Connection	3/4 in G
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas
Type	Solenoid
Orifice Diameter	1.2mm
Body Material	Polyamide
Series	189
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Flow Factor Kv	1.2L/min
