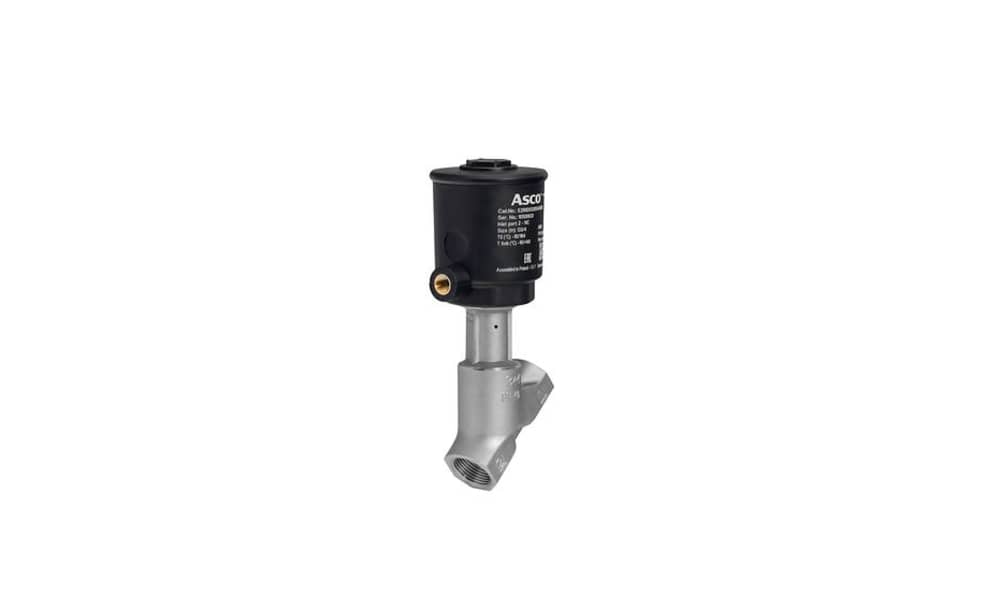

ASCO E290D04B0SA0000, Angle Seat type Pneumatic Actuated Valve, G 1in to G 1in, 16 bar

Part No. E290D04B0SA0000

The ASCO E290D04B0SA0000 is a 1" (DN25) stainless steel Series 290 angle seat valve with G 1 threaded ports, rated to 16 bar. It is a normally closed valve with fluid entry under the disc and closes when pilot air is lost, providing fail-safe shut-off. Genuine ASCO valve, supplied in the UAE by General Tech Services LLC. Pricing is quote-based. Request a quote in under a minute - call +971 6 543 6933.

The ASCO E290D04B0SA0000 is designed for reliable on/off isolation in demanding industrial applications. Its angled seat provides a high-flow path with low pressure loss, with a flow coefficient of Kv 17.8 m³/h. The stainless steel body provides corrosion resistance for wash-down, treated water and demanding process environments, while PTFE sealing supports operation with suitable process media.

The valve uses a 90 mm plastic piston actuator with a G 1/4 pilot port. The actuator can rotate through 360° for convenient pilot tubing access, and the valve internals can be serviced without removing the body from the pipework.

Series 290 valves are designed for air, inert gas, water, oil and steam applications, with fluid temperatures from -10 °C to +184 °C. The supplied specifications also include PED 2014/68/EU, EN ISO 13849-1 and IEC 61508 SIL 2 compliance/capability.

Ready to order the ASCO E290D04B0SA0000? Speak to our team. Call +971 6 543 6933

Key Benefits

• 1" (DN25) G 1 threaded ports for standard BSP pipework

• Normally closed configuration with fluid entry under the disc

• Spring-closing action on loss of pilot air for fail-safe shut-off

• Rated to 16 bar with a high-flow angled seat

• Kv 17.8 m³/h for efficient flow and low pressure loss

• Stainless steel body for demanding industrial environments

• PTFE disc seal and maintenance-free stuffing box

• 90 mm plastic piston actuator with G 1/4 pilot port

• 360° actuator rotation for flexible pilot tubing installation

• Serviceable in-line without removing the valve body from the pipework

• Genuine ASCO valve supplied by General Tech Services LLC in the UAE

Who This Product Is Best For

• Steam, hot water and compressed-air isolation on 1" lines up to 16 bar

• OEM machine builders requiring a fail-closed valve when pilot air is lost

• Industrial process and utility systems requiring normally closed pneumatic isolation

• Applications where stainless steel construction is useful for wash-down or treated-water environments

• Maintenance teams replacing worn angle seat valves with genuine ASCO stock

How to Install & Use It

1. Confirm the nameplate matches E290D04B0SA0000, 1", 16 bar and the normally closed configuration. Verify compatibility with the operating medium, pressure and temperature.

2. Install a suitable strainer upstream, position the valve as required and follow the flow arrow marked on the valve body.

3. Connect filtered pilot air to the G 1/4 pilot port through a suitable 3/2 solenoid pilot valve.

4. Cycle the valve several times, check all connections for leaks and verify the position indicator before putting the system into normal service.

Frequently Asked Questions

What is the ASCO E290D04B0SA0000?
It is a 1" (DN25) stainless steel Series 290 angle seat valve with G 1 threaded ports. It is normally closed, uses fluid entry under the disc and is rated to 16 bar.

What media can it handle?
The supplied specifications list air, inert gas, water, oil and steam, with a fluid temperature range of -10 °C to +184 °C. Always confirm material compatibility with the specific fluid and operating conditions.

How is the valve operated?
It is a pressure-operated pneumatic valve. Filtered air or water pilot pressure moves the piston, typically through a suitable 3/2 solenoid pilot valve. Maximum pilot pressure is 10 bar.

What happens if pilot air is lost?
The normally closed configuration uses spring force to close the valve when pilot pressure is removed, shutting off the line and providing fail-safe operation.

Should I choose the E290D04B0SA0000 or another Series 290 valve?
Choose the valve based on line size, connection type, pressure rating, medium and operating conditions. Send your process data and valve part number to General Tech Services LLC for compatibility confirmation.

How do I get a price and lead time?
Pricing is quote-based. Call General Tech Services LLC on +971 6 543 6933 or submit the Request a Quote form.

Is this a genuine ASCO valve?
General Tech Services supplies original ASCO valves in the UAE with technical support.
