ASCO G256C135S0V01F1, Solenoid Valve , 2 port(s) , Normally Closed, 24 V dc, G1/8in

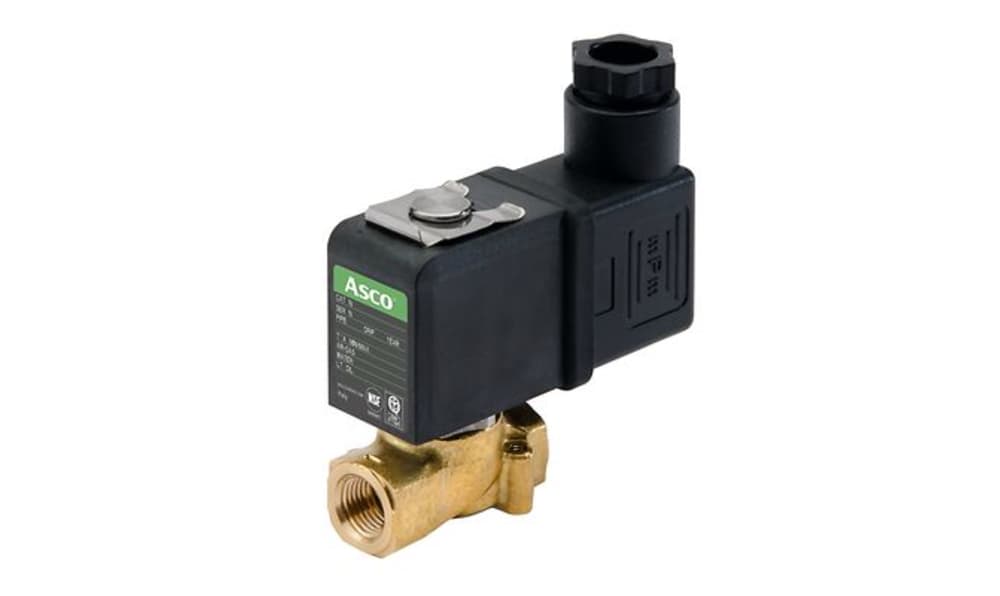

Name: ASCO G256C135S0V01F1, Solenoid Valve , 2 port(s) , Normally Closed, 24 V dc, G1/8in
Brand: Asco
SKU: G256C135S0V01F1
Availability: OutOfStock

Part Number : G256C135S0V01F1

Availability: Sold out

Detailed Description
Specifications

FK Series

Panasonic FK Series electrolytic capacitors feature endurance of 2000 hours to 5000 hours at +105 °C (dependent on case size). These electrolytic capacitors offer a miniaturised solution. The are 30% to 40% smaller than the FC series, and offer 40% to 60% lower impedance than the FC series.

Product features:

• Low ESR

• High reliability

• High ripple current

• Low impedance

• Long life

• Surface Mount

Applications:

Panasonic FK Series electrolytic capacitors are AEC-Q200 qualified and suitable for use in automotive applications. These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure in motor drivers, inverters, measuring instruments, power supplies, HEMS, BEMS and FEMS. Other suitable applications include ICT applications such as PCs, base stations, data centres, non-contact charge. FK Series Type V aluminium capacitors can be utilised in home appliances including air conditioners, white goods and home information appliances. Other uses include OA equipment, lighting, medical equipment, electric tools and power management, safety, infotainment and comfort accessories in automotive applications.

Approvals

AEC-Q200 qualified

The Asco Compact valve is a normally closed, two-way design featuring an orifice size of 1.6 millimeters. It operates on 24V DC with a power consumption of 3.5 watts. The valve body is constructed from brass, ensuring durability, while the resilient sealing material is FPM. It is equipped with a Class F coil for reliable operation.

Connection size G1/8 inch
Nominal diameter of 5 millimeters
Spade plug without connector

Brand	Asco
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	G1/8in
Connection	1/8 in G
Operation	Direct
Default Valve Position	Normally Closed
Suitable Applications	Air, Gas, Liquid, Oil, Water
Type	2/2
Orifice Diameter	1.6mm
Body Material	Brass
Series	256
Maximum Working Pressure	12 bar
Operating Temperature Range	-10 → +60 °C
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Connection Gender	Female
