ASCO G256C146S1V01F1, Solenoid Valve , 2 port(s) , NC, 24 V, 1/8in

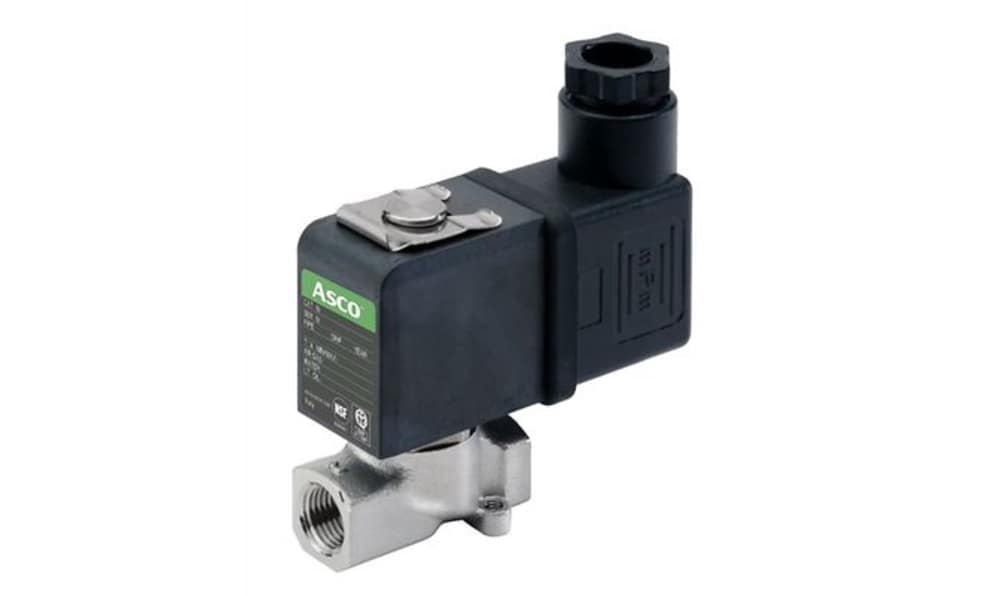

Name: ASCO G256C146S1V01F1, Solenoid Valve , 2 port(s) , NC, 24 V, 1/8in
Brand: Asco
SKU: G256C146S1V01F1
Availability: OutOfStock

Part Number : G256C146S1V01F1

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve embodies superior engineering designed for diverse applications. Its robust construction ensures long-lasting performance, ideal for controlling the flow of air, oil, and water with precision. The valve's direct operated mechanism allows for both normally closed and normally open configurations, providing exceptional flexibility. Featuring quick disassembly of the core tube, maintenance is simplified, ensuring minimal downtime. Certified by UL429 and EN 60335 for reliability, this product meets stringent safety standards, making it a trusted choice for engineers and technicians alike. With an ambient temperature range of -10°C to +60°C, it adapts seamlessly to various environments, proving indispensable in industrial settings.

Wide range of compatibility with different fluids
User-friendly manual operator enhances installation ease
Compact design contributes to space-saving solutions
Low weight allows for flexible mounting options
AC/DC interchangeability boosts adaptability in applications
Compliance with key industry certifications ensures safety and performance
High response time guarantees efficient operation
Durable body material withstands rigorous conditions

Brand	Asco
Supply Voltage	24 V
Number of Ports	2
Connection Size	1/8in
Connection	G 1/8
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	2mm
Series	256
Body Material	Brass
Maximum Working Pressure	15 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Flow Factor Kv	0.12L/min
