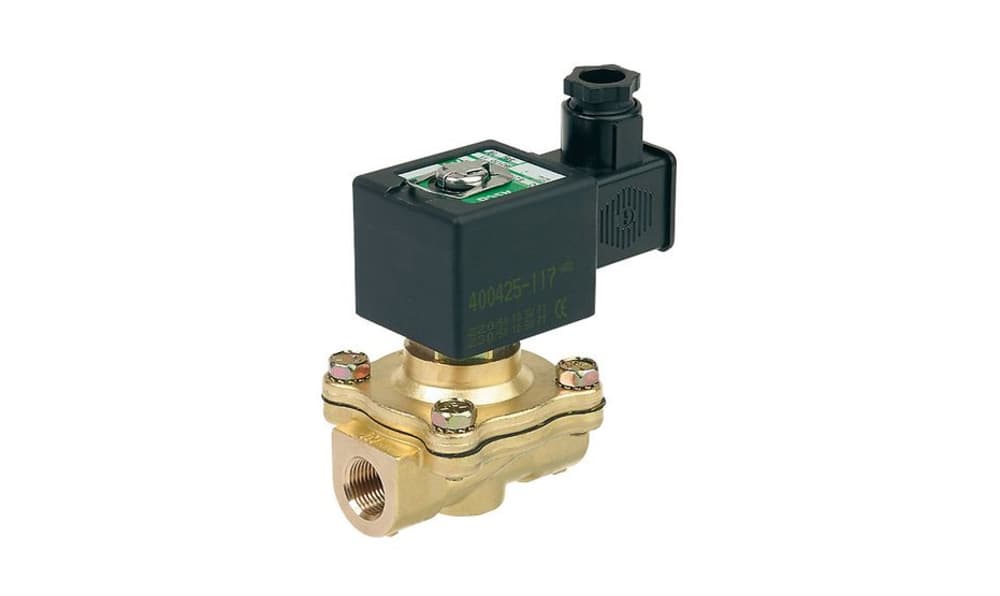

ASCO SCE210C494.230/50, Solenoid Valve , 2 port(s) , NC, 230 V, 1/2in

Name: ASCO SCE210C494.230/50, Solenoid Valve , 2 port(s) , NC, 230 V, 1/2in
Brand: Asco
SKU: SCE210C494.230/50
Availability: OutOfStock

Part Number : SCE210C494.230/50

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is engineered to deliver exceptional reliability and performance within a multitude of applications, from air and inert gases to various fluids. Designed for pilot-operated control, this valve features a hung diaphragm mechanism that ensures consistent operation even under varying pressure conditions. Its robust construction, made possible by high-quality materials such as stainless steel and brass, guarantees durability and long service life, making it an ideal choice for demanding environments.

Pilot operated, ensuring precise control
Designed with a hung diaphragm for reliable sealing
Suitable for a range of fluids, enhancing versatility
Constructed from durable materials for long-lasting performance
Complies with EU directives for operational safety
Offers low response times for efficient operation
Minimal maintenance requirements support easy reliability
Can be mounted in any orientation for installation convenience

Brand	Asco
Supply Voltage	230 V
Number of Ports	2
Connection Size	1/2in
Connection	G 1/2
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	16mm
Body Material	Brass
Series	210
Maximum Working Pressure	16 bar
Operating Temperature Range	-20 → +85 °C
Servo Assist	No
Thread Standard or Connection Type	G
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+85°C
Flow Factor Kv	57L/min
