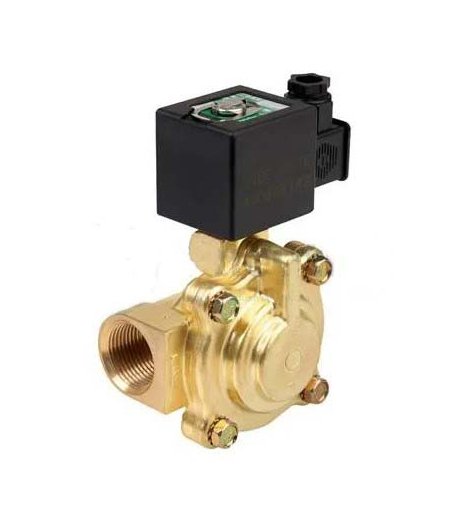

ASCO SCE220A021.230/50-60 |Solenoid Valve | Series 220 | Voltage 230V AC

Name: ASCO SCE220A021.230/50-60 |Solenoid Valve | Series 220 | Voltage 230V AC
Brand: Asco
SKU: SCE220A021.230/50-60
Availability: OutOfStock

Part Number : SCE220A021.230/50-60

The tiny and compact size of ASCO Series 220 solenoid valves makes them ideal for applications involving hot water and steam. Robust, tight seal discs are supported throughout by lightweight stamped steel pistons in the valves. A minimum operating pressure of 0.35 bar is required for the valves. Article 3.3 of the Pressure Equipment Directive 97/23/EC and all other applicable EC Directives apply to all products.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Flow Coefficient	3.5 m3/h
Flow Coefficient	58 l/min
Functions	2/2 NC
Material	Brass
Material	Seal: EPDM
Orifice	16 mm
Port Type	G1/2
Power	Coil AC: 10 W
Series	220
Type	Solenoid Valve
Voltage	230V AC
Weight	0.90 Kg
Working pressure max	10 bar
Working pressure min.	0

Voltage Rating:It operates at 230V AC, making it suitable for standard AC voltage systems.
Frequency Range:It is designed for 50-60 Hz frequency, which is commonly used worldwide, including in Europe and parts of Asia.
Compact Design:This valve is part of the Series 220, known for compact, space-efficient designs.
Durability:ASCO solenoid valves are built for durability, offering long service life in demanding applications.
Fluid Compatibility:Suitable for a wide range of gases and liquids, depending on the specific model's configuration.
Fast Response:Solenoid valves from ASCO Series 220 typically offer fast response times, ideal for controlling fluid flow or pressure in automated systems.
Manual Override:Often equipped with a manual override feature, allowing manual control in case of power failure.
Easy Installation and Maintenance:Designed for easy installation, and typically features simple maintenance routines to minimize downtime.
High Flow Capacity:They provide high flow capacity, making them ideal for high-demand applications.
Corrosion Resistance:Many models in this series are built with corrosion-resistant materials, enhancing their performance and lifespan in harsh environments.
