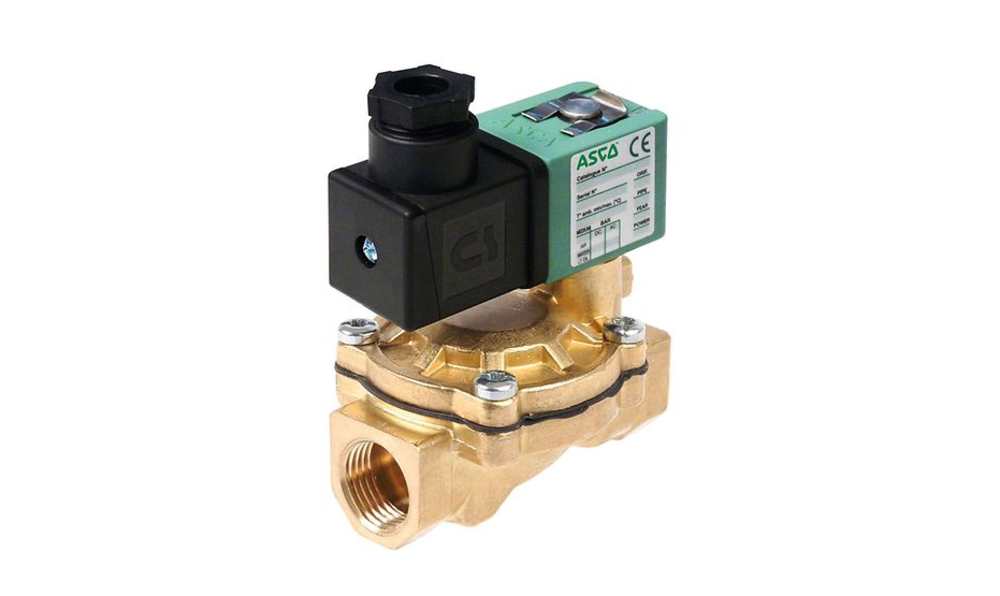

ASCO SCE238D008.48/50-60, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ASCO SCE238D008.48/50-60, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in

Name: ASCO SCE238D008.48/50-60, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in
Brand: Asco
SKU: SCE238D008.48/50-60
Availability: OutOfStock

Part Number : SCE238D008.48/50-60

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve, designed for reliable performance in demanding applications, is an integral component for controlling the flow of water, air, and inert gases. Crafted for both AC and DC power sources, this model delivers superior operational efficiency with a robust construction that adheres to EU Directives. Its flexibility in installation allows for seamless integration into various systems, whether mounted in any orientation or used with standardised pipe connections. With a sophisticated design featuring a floating diaphragm and a built-in pilot, this solenoid valve ensures optimal control and accuracy, making it ideal for automatic control tasks. It operates within a wide ambient temperature range and has been engineered for longevity and resilience, meeting both operational and regulatory demands.

Compact design allowing versatile installation options
Compatible with various fluids including air, water, and inert gases
Durable materials provide long-lasting performance
Enhanced sealing capabilities reduce leakage risks
Electrical enclosure with IP65 protection ensures reliable operation in harsh environments
Quick response times enhance system efficiency
Interchangeable magnetic heads simplify maintenance and replacement
Available with optional FPM and EPDM seals for added compatibility

Brand	Asco
Supply Voltage	48 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	15mm
Body Material	Brass
Series	238
Maximum Working Pressure	16 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+60°C
Flow Factor Kv	70L/min
