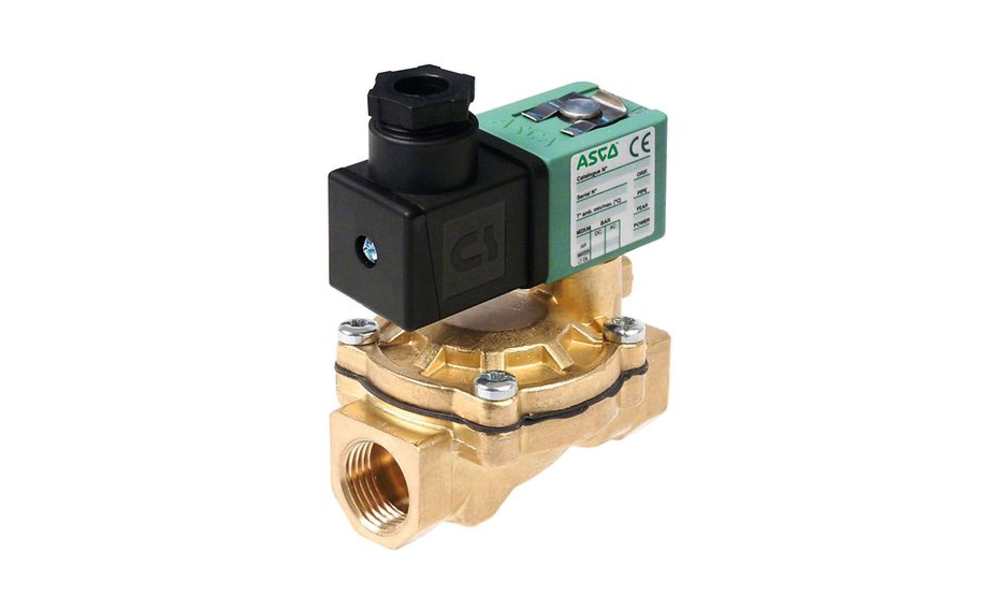

ASCO SCG238A047.24/DC, Solenoid Valve , 2 port(s) , NC, 24 V, 1/2in

Name: ASCO SCG238A047.24/DC, Solenoid Valve , 2 port(s) , NC, 24 V, 1/2in
Brand: Asco
SKU: SCG238A047.24/DC
Availability: OutOfStock

Part Number : SCG238A047.24/DC

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve from the 238 series is an innovative solution designed for effective regulation of fluid flow in various applications. Engineered to minimise water hammer and enhance operational efficiency, this valve operates effortlessly within a temperature range of -20°C to +50°C. Its pilot-operated design ensures reliable performance, while the self-cleaning mechanism in the bleed orifice guarantees optimal functionality. The inclusion of EPDM seals further enhances fluid compatibility, making this valve suitable for both cold and hot water applications. Compliance with essential EU directives underscores its safety and reliability, establishing the product as a vital component in your fluid control systems.

Pilot-operated design for enhanced reliability
Self-cleaning bleed orifice for consistent performance
Suitable for both cold and hot water applications
Minimises water hammer effectively
EPDM seals available for extended fluid compatibility
Meets essential EU directives for safety standards
Flexible installation options without compromising operation
Compact dimensions facilitate easy integration into existing systems

Brand	Asco
Supply Voltage	24 V
Number of Ports	2
Connection Size	1/2in
Connection	G 1/2
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	19mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-20 → +50 °C
Servo Assist	No
Minimum Operating Temperature	-20°C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+50°C
Flow Factor Kv	70L/min
