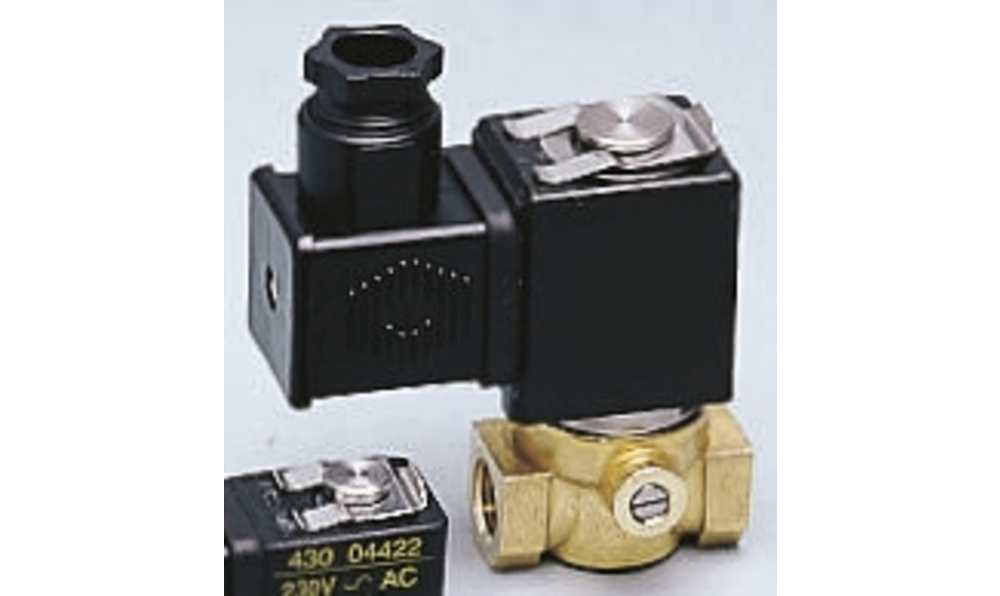

ASCO SCG256A404VMS 110/50, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/4in

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ASCO SCG256A404VMS 110/50, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/4in

Name: ASCO SCG256A404VMS 110/50, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/4in
Brand: Asco
SKU: SCG256A404VMS 110/50
Availability: OutOfStock

Part Number : SCG256A404VMS 110/50

Availability: Sold out

Detailed Description
Specifications

Two-way, Direct Operated, Zero Pressure, N/C Valves

Two-way, direct acting solenoid valves, normally closed with threaded port connection.

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Ranging from -10°C to +100°C
Can be mounted in any position

Note

Pressure ranges are for water and may differ for other media.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	24 V ac
Number of Ports	2
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	2/2
Orifice Diameter	2.4mm
Series	256
Body Material	Brass
Maximum Working Pressure	12 bar
Operating Temperature Range	-10 → +60 °C
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Connection Gender	Female
Flow Factor Kv	0.16m³/h
Maximum Closing Time	10ms
Maximum Opening Time	10ms
