ASCO SCXG238A046.230/50.17777, Solenoid Valve , 2 port(s) , NC, 230 V, 1/2in

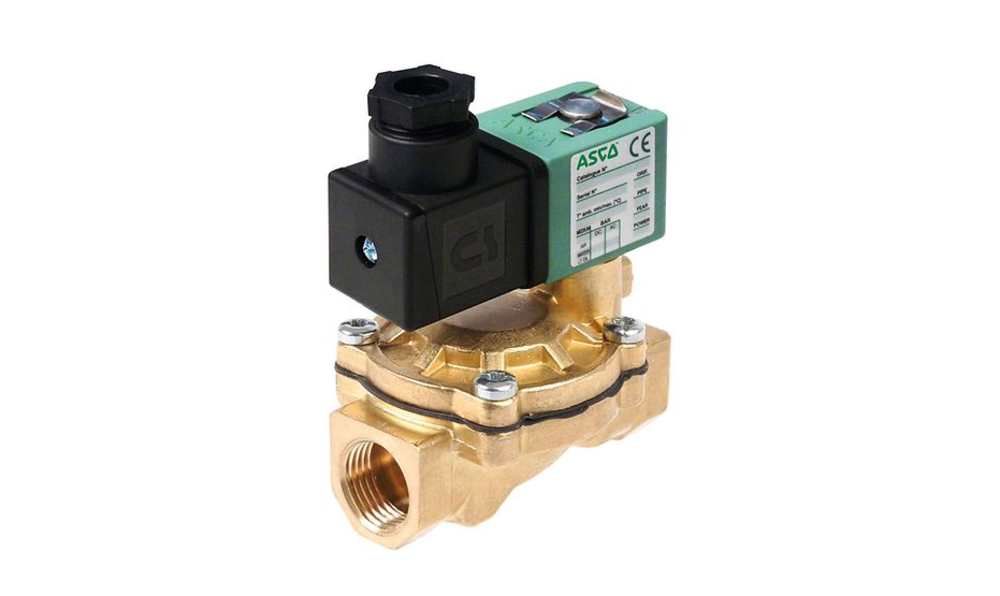

Name: ASCO SCXG238A046.230/50.17777, Solenoid Valve , 2 port(s) , NC, 230 V, 1/2in
Brand: Asco
SKU: SCXG238A046.230/50.17777
Availability: OutOfStock

Part Number : SCXG238A046.230/50.17777

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve represents cutting-edge engineering tailored for both cold and hot water control. The anti-water hammer design significantly mitigates operational noise and prolongs system life. Characterised by its robust construction, the valve is built with high-quality materials to ensure maximum reliability in demanding environments. With a wide operational range, it effortlessly caters to various differential pressure needs while maintaining fluid integrity. The valve stands compliant with all relevant EU directives, assuring users of its safety and efficiency. Enhanced with a self-cleaning mechanism, it guarantees optimal performance under varying conditions and reduces the need for maintenance. This product is perfect for installation in both residential and industrial applications, promising dependable service and ease of deployment across diverse piping networks.

Two-way shut-off functionality allows seamless control of fluid flow
Designed to minimise water hammer, enhancing system longevity
Self-cleaning device ensures maintenance-free operation for longer periods
Versatile compatibility with a range of fluid types enhances its usability
Compact design allows for installation in tight spaces without compromising performance
Integrated with high-quality NBR seals for superior fluid resistance
Available in multiple standard voltages for adaptability to various system requirements
Moulded IP65 rating provides protection against dust and water ingress

Brand	Asco
Supply Voltage	230 V
Number of Ports	2
Connection Size	1/2in
Connection	G 1/2
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	12.5mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-20 → +50 °C
Servo Assist	No
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-20°C
Thread Standard or Connection Type	G
Flow Factor Kv	35L/min
