AVENTICS 0820402002 Roller 3/2 Pneumatic Manual Control Valve ST Series, G 1/8, 1/8in, III B

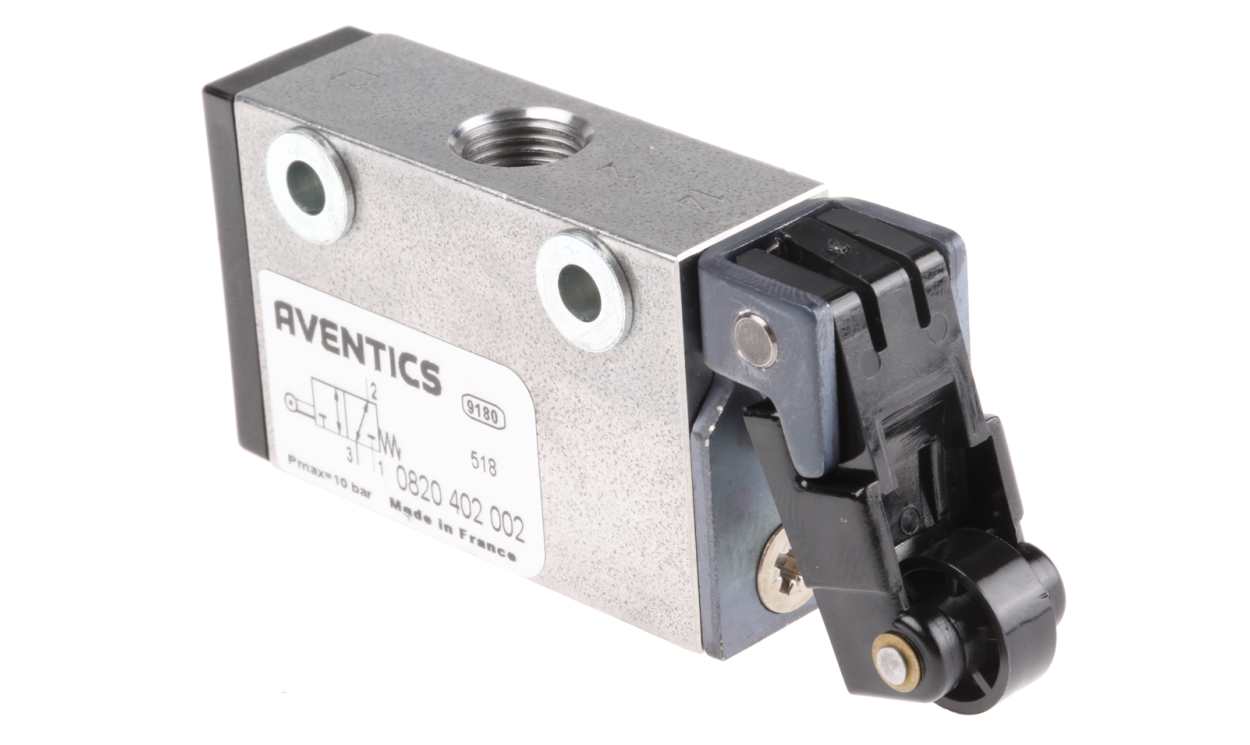

Name: AVENTICS 0820402002 Roller 3/2 Pneumatic Manual Control Valve ST Series, G 1/8, 1/8in, III B
Brand: Aventics
SKU: 0820402002
Availability: OutOfStock

Part Number : 0820402002

Availability: Sold out

Detailed Description
Specifications

Manually Operated Valves

Stainless steel bodied manually operated and panel mounted 3/2 and 5/2 valves

Spool valve with metal to metal sealing
Hardened stainless steel valve body
Working pressure -0.95 → 10 bar
Ambient temperature range -15 → 80 °C
Maximum particle size 5μm
Oil content of compressed air 5 mg/m³ → 25 mg/m³

ST Series Manually Operated Valves

Brand	AVENTICS
Control Mechanism	Roller
Connection Port Thread	G 1/8
Function	3/2
Thread Size	1/8in
Thread Standard	G
Manufacturer Series	ST
Maximum Operating Pressure	10 bar
Body Material	Stainless Steel
Maximum Flow Rate	280L/min
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+80°C
Number of Ports	3/2
Model Number p	III B
