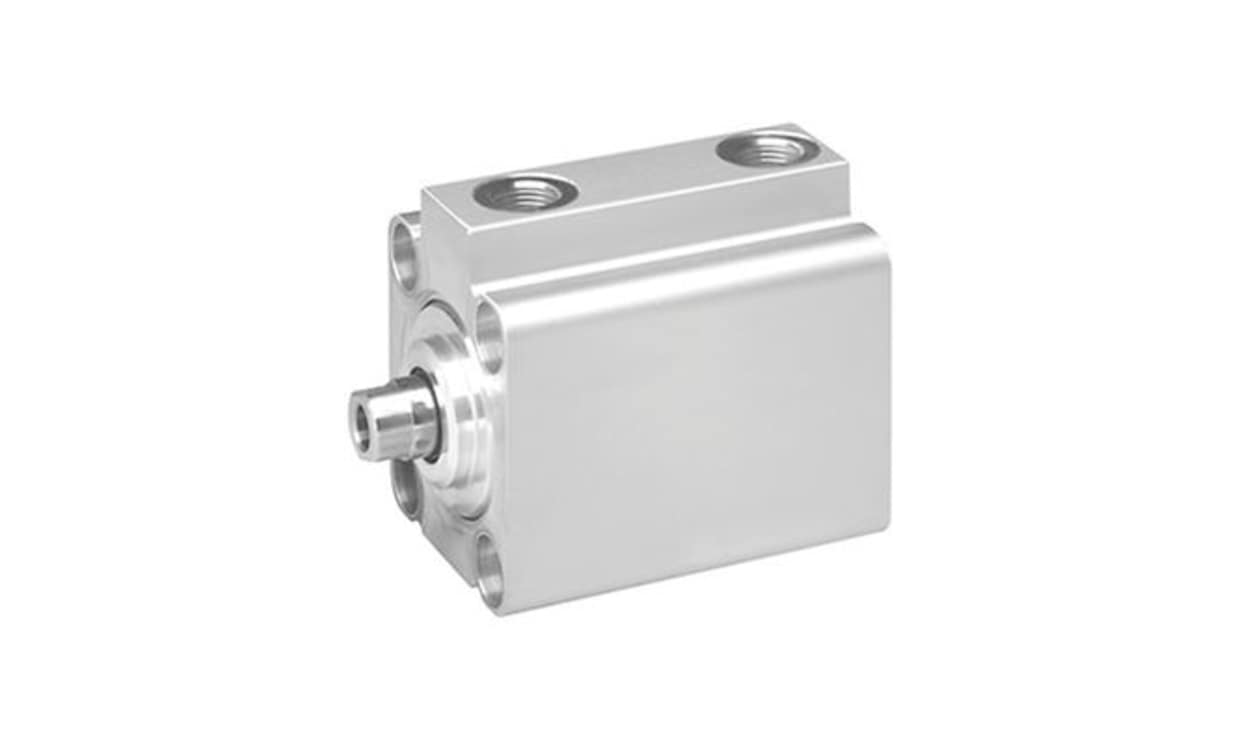

AVENTICS 0822010523 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 20 mm Stroke, KHZ

Name: AVENTICS 0822010523 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 20 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010523
Availability: OutOfStock

Part Number : 0822010523

Specified with a 20 mm bore and 20 mm stroke, the AVENTICS 0822010523 is a double-acting pneumatic piston rod cylinder in the KHZ series, using M5 port connections and a female piston rod thread.

Bore: 20 mm
Stroke: 20 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is purposefully designed for use in confined spaces, blending high performance with exceptional integration ease in various machinery applications. This non-standard cylinder excels in reliability and efficiency, making it suitable for industrial environments. Its double-acting functional principle ensures powerful operation, while the elastic cushioning technology enhances longevity and reduces maintenance requirements. Crafted with industry-standard materials, including a sturdy aluminum cylinder tube and stainless steel piston rod, this cylinder guarantees durability under demanding conditions. With a lightweight design and remarkable strength, the Series KHZ is an ideal choice for those seeking optimal performance in a compact form factor.

Compact design for installation in tight spaces
Double-acting mechanism provides enhanced operational efficiency
Elastic cushioning for smoother performance and extended product life
Constructed from durable materials for superior longevity
Standardised dimensions facilitate easy integration into existing systems
Designed to operate effectively within a wide range of temperatures
Versatile cylinder suitable for various industrial applications
User-friendly installation and maintenance process

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010523
Action	Double
Stroke	20mm
Bore	20mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.082 kg
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.021 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C

AVENTICS 0822010523 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 20 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010523 Datasheet - 0822010523 A700000012571523
