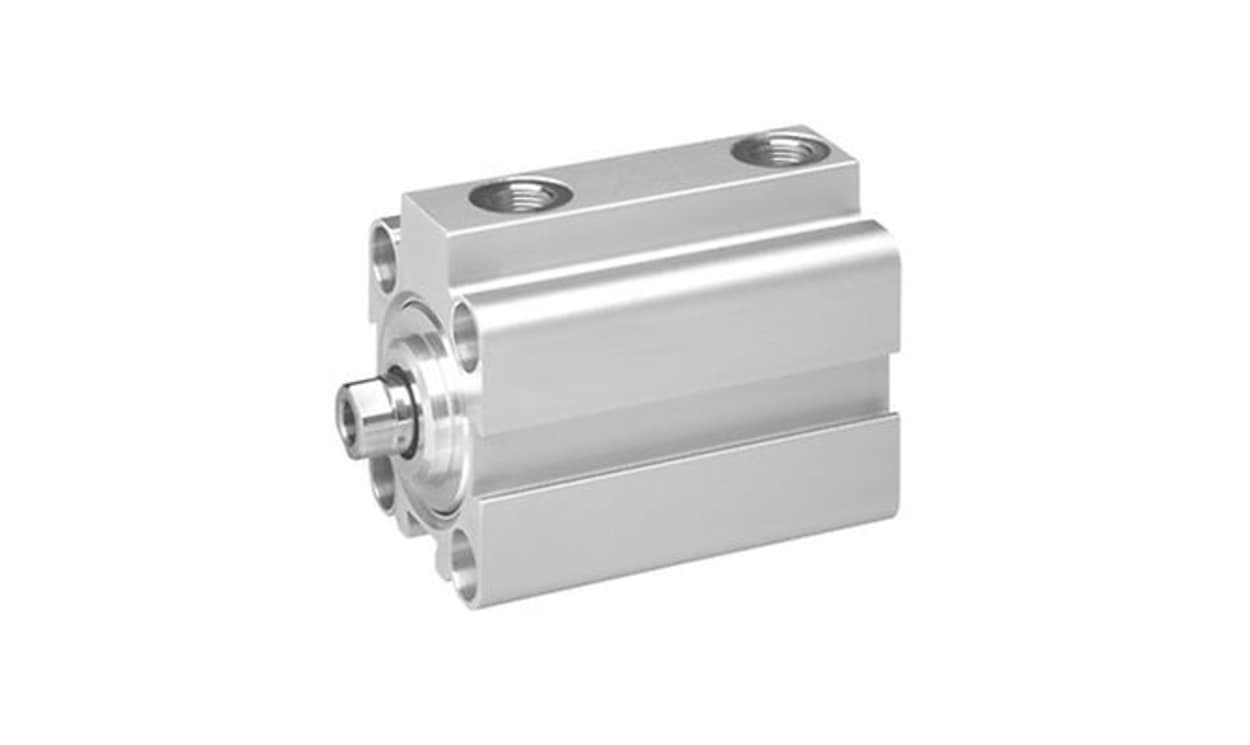

AVENTICS 0822010600 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 5 mm Stroke, KHZ

Name: AVENTICS 0822010600 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 5 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010600
Availability: OutOfStock

Part Number : 0822010600

A 5 mm stroke on a 12 mm bore sets the AVENTICS 0822010600 apart within the KHZ range of double-acting piston rod cylinders. Air enters through M5 ports and the rod end carries a female piston rod thread.

Bore: 12 mm
Stroke: 5 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is engineered for precision and efficiency in confined spaces, making it an ideal component for diverse industrial applications. Designed to seamlessly integrate into machinery, this non-standard cylinder features a compact design that facilitates ease of installation. Its robust construction ensures reliability and durability, even in challenging environments, allowing you to maintain high operational standards. With double-acting functionality, this cylinder guarantees effective performance across a range of tasks. This product distinctly offers enhanced cushioning and a magnetic piston, amplifying operational performance while minimising wear and tear. The Series KHZ combines advanced technology with user-centric design, positioning it as a definitive choice for professionals aiming for excellence in automation and control.

Designed for tight installation spaces, optimising available space
Non-standard short-stroke cylinder for versatile applications
Double-acting operational principle offers reliable performance
Elastic cushioning technology reduces impact and extends lifespan
Magnetic piston enhances the functionality and precision of the device
Constructed from high-quality materials ensuring longevity and resistance to environmental challenges
Standard industry scraper designed to protect internal components
Accommodates a wide range of working pressures, offering flexibility in various applications
Lightweight design contributes to overall efficiency in machinery integration

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010600
Action	Double
Bore	12mm
Stroke	5mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822010600 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 5 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010600 Datasheet - 0822010600 A700000012572307
