AVENTICS 0822010655 Pneumatic Piston Rod Cylinder - , 40mm Bore, 30mm Stroke, KHZ Series, Double Acting

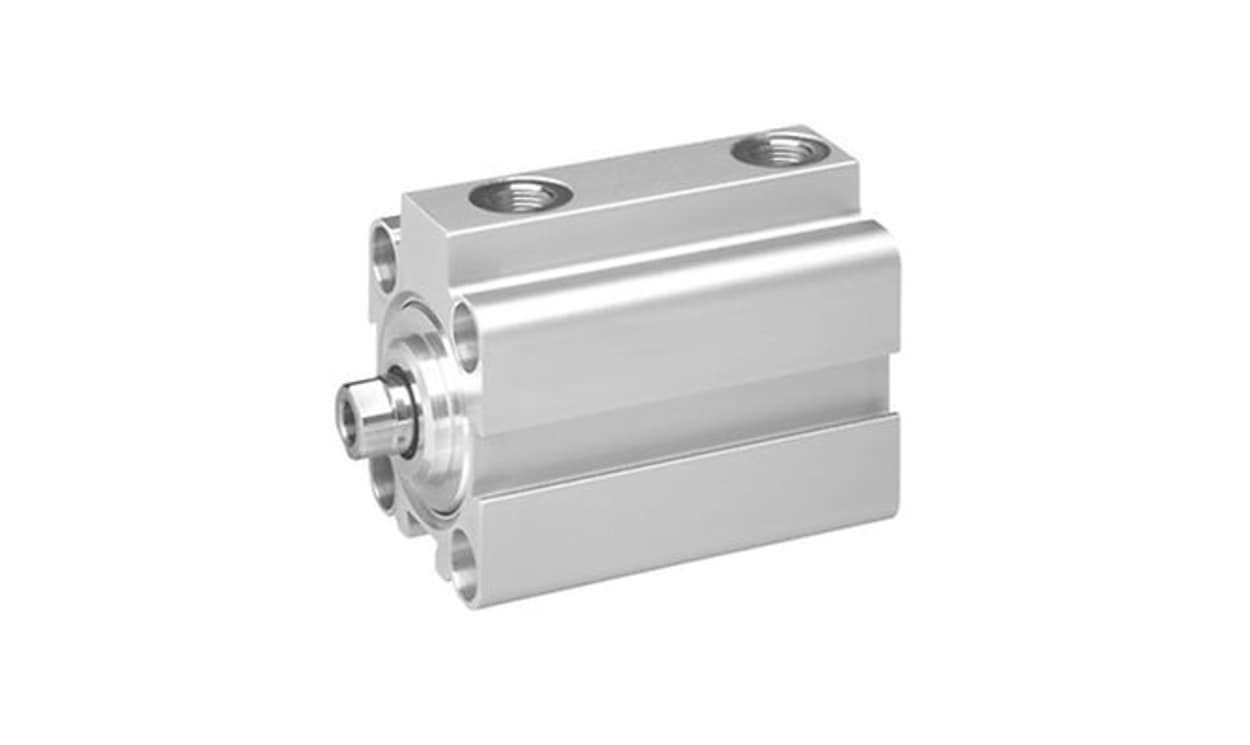

Name: AVENTICS 0822010655 Pneumatic Piston Rod Cylinder - , 40mm Bore, 30mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010655
Availability: OutOfStock

Part Number : 0822010655

Availability: Sold out

Detailed Description
Specifications

The Aventics Series KHZ short-stroke cylinder presents a sophisticated solution designed to excel in confined spaces. This cutting-edge cylinder is engineered for excellent integration with machinery, ensuring both safety and efficiency. It is a double-acting piston with precise elastic cushioning, catering not only to industrial requirements but also optimising performance under varying environmental conditions. With a robust structure and high-quality materials, this cylinder guarantees reliability. Its compact design does not compromise on power, making it a preferred choice for intricate applications. The Series KHZ is an ideal partner for those demanding precision in mechanical actuation, providing seamless movement while maintaining minimal installation footprint.

Designed for optimal performance in tight installation spaces
Constructed with durable materials for enhanced longevity
Equipped with elastic cushioning to reduce impact
Features a magnetic piston for reliable operation
Offers versatility with double-acting functionality
Compatible with standard industrial environments
Supports efficient integration into machinery systems
Works effectively across a wide temperature range
Lightweight for easy handling and installation
Low maintenance requirements thanks to quality engineering

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010655
Action	Double
Bore	40mm
Stroke	30mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.285 kg
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.052 @ 10 mm kg/mm
