AVENTICS 0822010663 Pneumatic Piston Rod Cylinder - , 50mm Bore, 20mm Stroke, KHZ Series, Double Acting

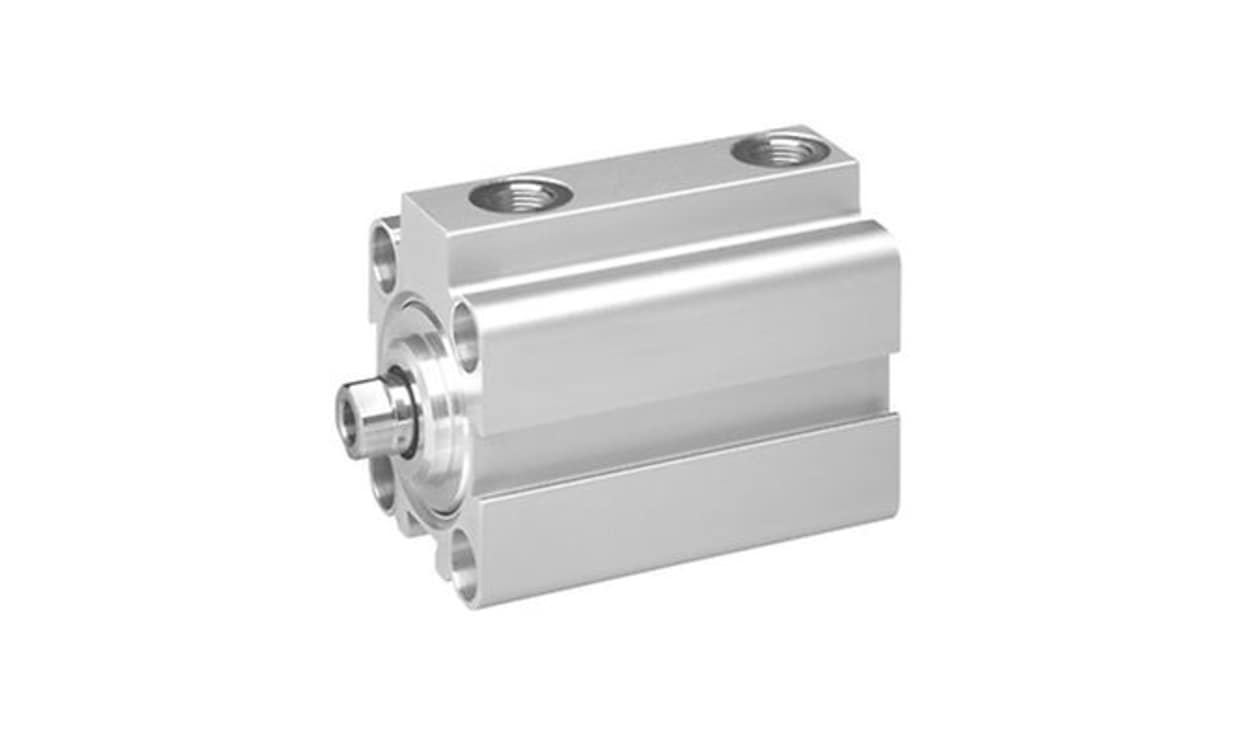

Name: AVENTICS 0822010663 Pneumatic Piston Rod Cylinder - , 50mm Bore, 20mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010663
Availability: OutOfStock

Part Number : 0822010663

Availability: Sold out

Detailed Description
Specifications

The Aventics Series KHZ short-stroke cylinder is specifically engineered for applications requiring compact designs without compromising performance. With its innovative double-acting functional principle, this cylinder is ideal for tight installation spaces, providing reliable actuation in diverse industrial environments. Designed to be both effective and efficient, it offers elastic cushioning and a magnetic piston for accurate positioning. This cylinder not only meets industry standards but also ensures easy integration into existing machinery, allowing for seamless upgrades. With a maximum working pressure of 10 bar and a stroke range catering to various needs, it delivers consistent performance while ensuring durability across a range of temperatures and operational conditions. The robust construction from high-quality materials positions this cylinder as a dependable component for any pneumatic system.

Compact design allows for integration in space-constrained environments
Double-acting functionality maximises efficiency and operational flexibility
Elastic cushioning enhances the life expectancy of moving parts
Magnetic piston ensures precise positioning and reliable operation
Constructed from premium materials for enhanced durability and performance
Compatible with a wide temperature range, ensuring adaptability in various settings
Easy installation and maintenance simplify the integration process
Reliable performance under a maximum working pressure of 10 bar
Designed to optimise air consumption and reduce operational costs
Supports both standard and customised configurations for diverse applications

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010663
Action	Double
Bore	50mm
Stroke	20mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.388 kg
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.074 @ 10 mm kg/mm
