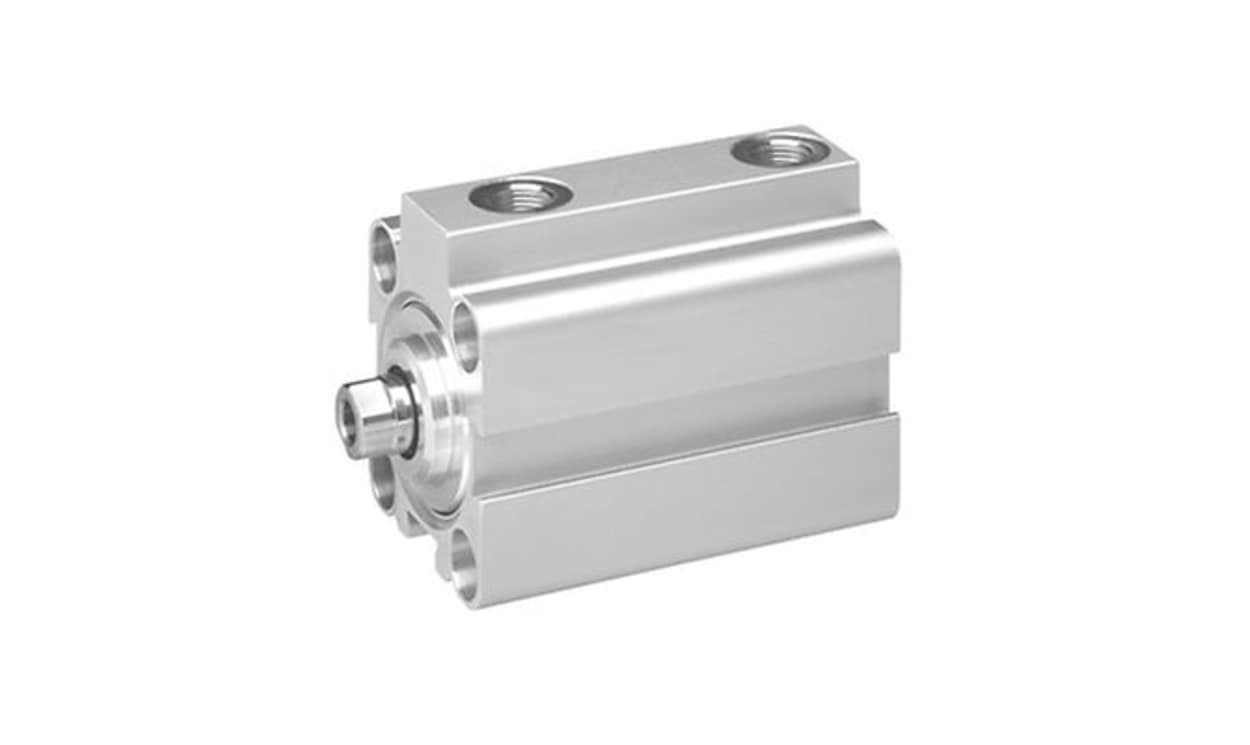

AVENTICS 0822010665 Pneumatic Piston Rod Cylinder - , 50mm Bore, 30mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010665 Pneumatic Piston Rod Cylinder - , 50mm Bore, 30mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010665
Availability: OutOfStock

Part Number : 0822010665

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from aventics, part of the Series KHZ, is expertly designed for applications where space is at a premium. With its compact size, this cylinder delivers remarkable efficiency, ensuring seamless integration into various machinery. The durable double-acting functional principle offers reliable operation, while the elastic cushioning enhances performance, reducing noise during actuation. The inclusion of a magnetic piston facilitates accurate position sensing, making it an ideal solution for automation processes. Furthermore, its robust materials contribute to longevity, ensuring that this cylinder can withstand the rigours of an industrial environment. Effortlessly navigate tight installation spaces and maintain high productivity with this exceptional short-stroke cylinder that exemplifies innovation and engineering excellence.

Designed for tight installation spaces, promoting versatility in machinery design
Double-acting mechanism ensures consistent performance under various operational demands
Magnetic piston included for enhanced position sensing capabilities
Constructed with durable materials for increased lifespan and reliability
Elastic cushioning significantly reduces noise and potential mechanical wear
Versatile operating temperatures allow for use in diverse industrial conditions
Constant oil content is essential for projected operational longevity
Environmentally friendly design complies with industry standards

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010665
Action	Double
Stroke	30mm
Bore	50mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.074 @ 10 mm kg/mm
Test Weight	0.388 kg
Maximum Operating Temperature	+80°C
