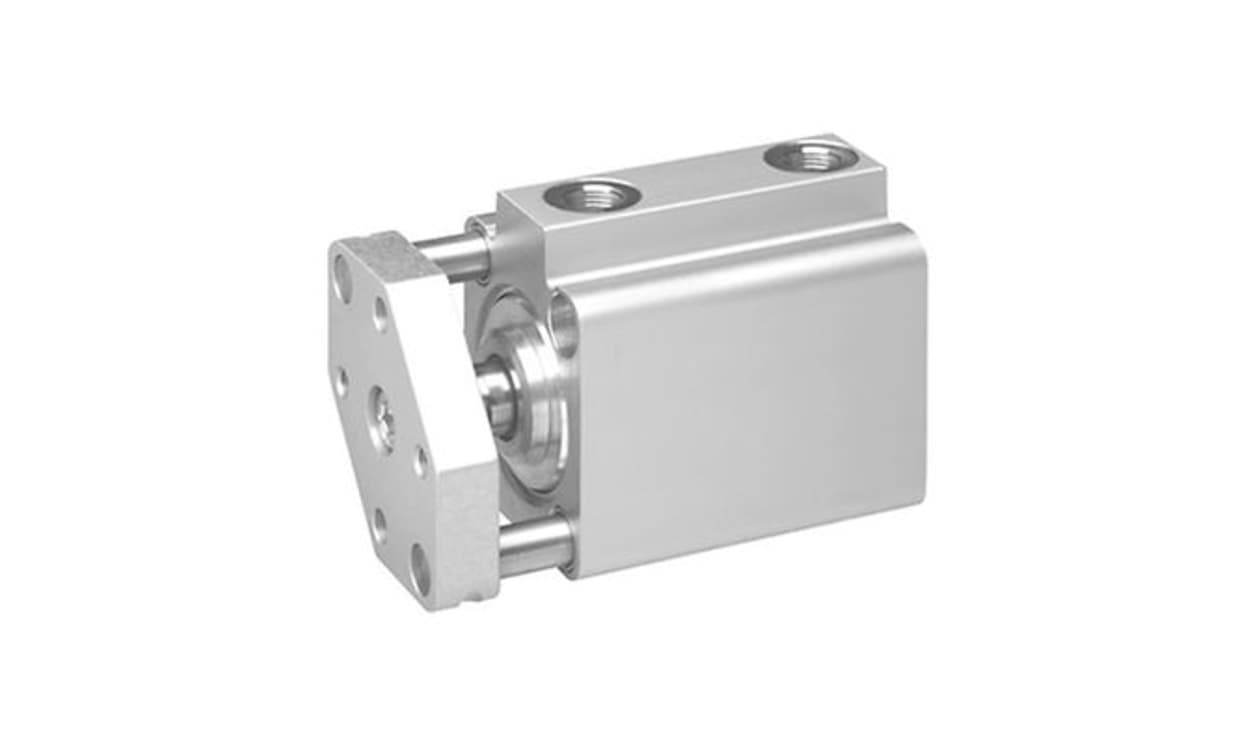

AVENTICS 0822010734 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 25 mm Bore, 25 mm Stroke, G 1/8

Name: AVENTICS 0822010734 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 25 mm Bore, 25 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010734
Availability: OutOfStock

Part Number : 0822010734

The AVENTICS 0822010734 KHZ series cylinder combines a 25 mm bore, a 25 mm stroke and double-acting operation, with connection by G 1/8, elastic cushioning and a female piston rod thread.

Bore / stroke: 25 mm / 25 mm
KHZ series, double acting
Pneumatic port: G 1/8
Max. operating pressure: 10 bar
Works from -25 °C up to +80 °C
Test weight 0.178 kg

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Short Stroke Cylinder from aventics is meticulously designed for maximum efficiency in confined spaces. The series KHZ integrates seamlessly into machinery, offering both safety and ease of use. Its compact dimensions do not compromise on performance, making it a reliable choice for diverse industrial applications. With a robust build tailored to withstand industry standards, this model excels in environments that demand reliability and durability. The double-acting functional principle ensures consistent performance, making this cylinder an essential component in various pneumatic systems.

Stainless steel piston rod promotes corrosion resistance and longevity
Nitrile rubber piston material supports effective sealing and longevity
Scraper material made of polyurethane optimises debris management
Features elastic cushioning for smooth operation and reduced wear
Operating temperature ranges meet demanding industrial requirements
Environmentally resistant materials suitable for harsh conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010734
Action	Double
Bore	25mm
Stroke	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.034 @ 10 mm kg/mm
Test Weight	0.178 kg

AVENTICS 0822010734 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 25 mm Bore, 25 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010734 Datasheet - 0822010734 A700000012571323
