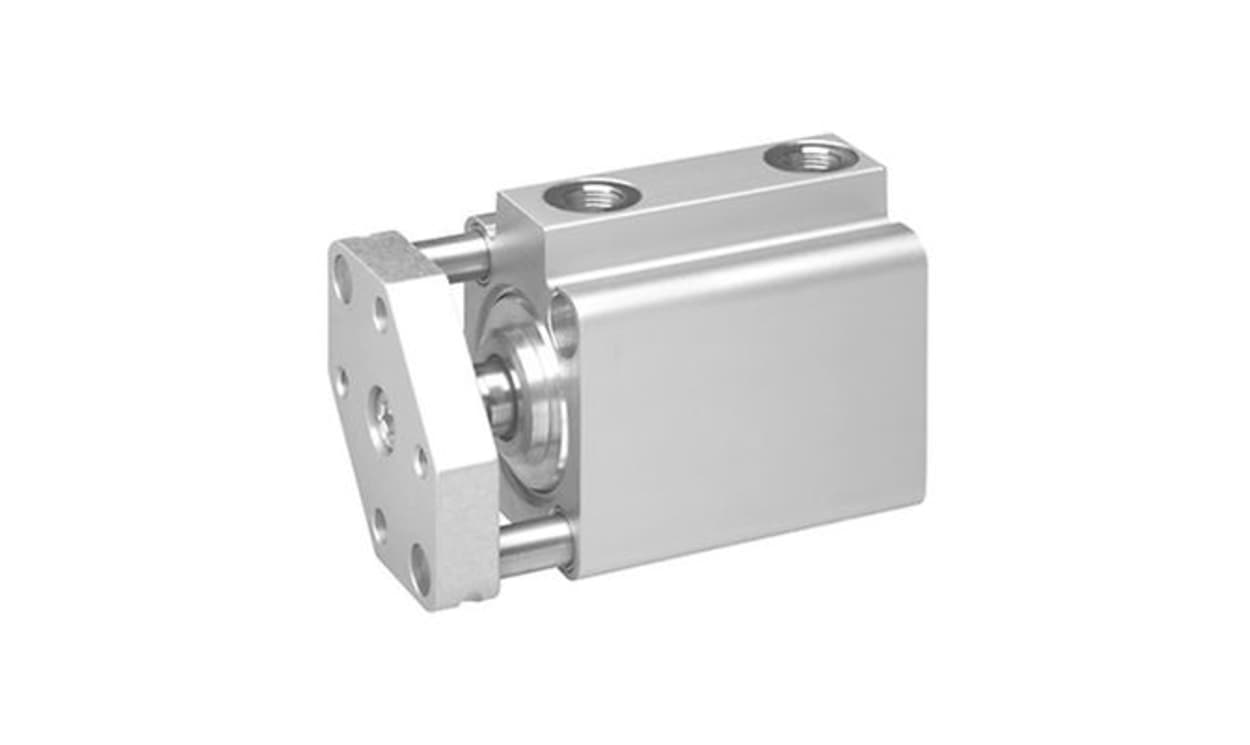

AVENTICS 0822010757 Pneumatic Piston Rod Cylinder - , 40mm Bore, 50mm Stroke, KHZ Series, Double Acting
- Detailed Description
- Specifications
- Downloads
Double-acting cylinder provides efficient performance, enhancing productivity
Elastic cushioning technology reduces shock loads, promoting longer service life
Constructed from premium materials for superior durability and reliability
Meets stringent industry standards for dependable operation in various environments
High force outputs cater to demanding applications, supporting operational efficiency
Simple integration due to standardised ports, facilitating hassle-free installation
Minimises maintenance needs with a robust design, reducing downtime
| Brand | AVENTICS |
| Manufacturer Series | KHZ |
| Model Number p | 0822010757 |
| Stroke | 50mm |
| Bore | 40mm |
| Action | Double |
| Pneumatic Connection | G 1/8 |
| Port Connection | G 1/8 |
| Piston Rod Thread Gender | Female |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +80°C |
| Stroke Interval Weight | 0.06 @ 10 mm kg/mm |
| Minimum Operating Temperature | -25°C |
| Test Weight | 0.285 kg |
