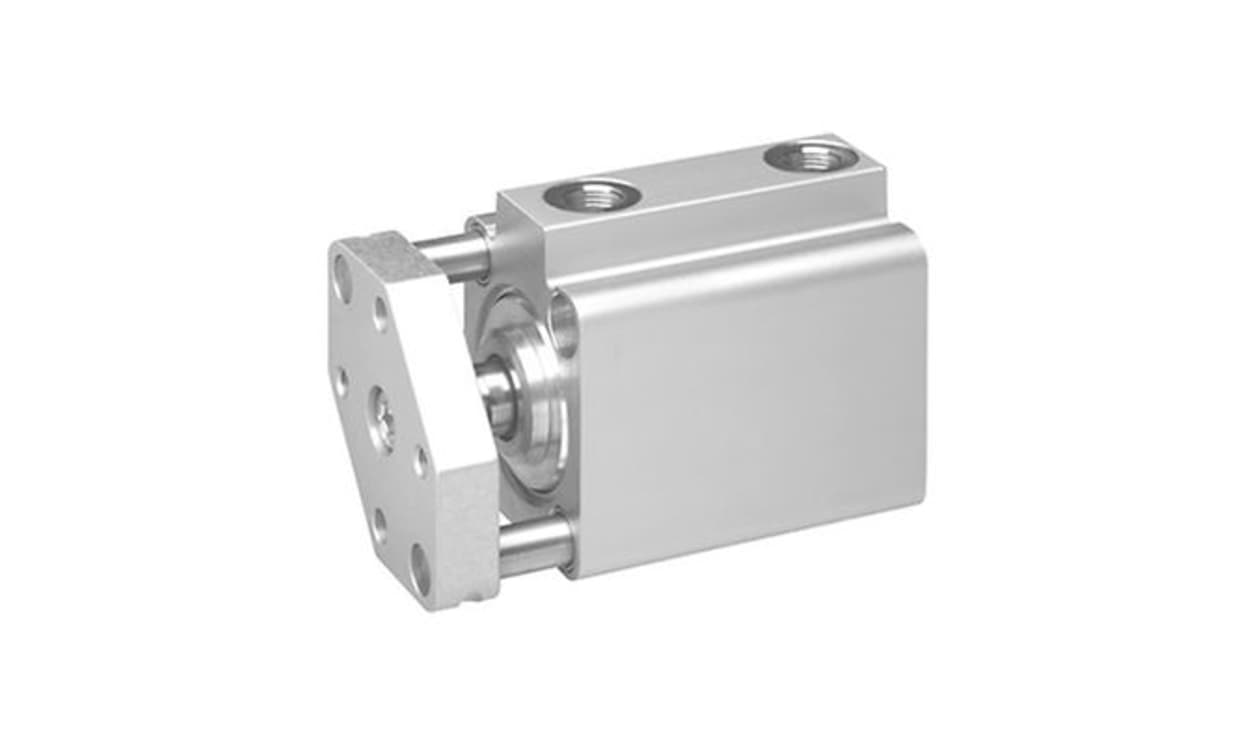

AVENTICS 0822010761 Pneumatic Piston Rod Cylinder - , 50mm Bore, 10mm Stroke, KHZ Series, Double Acting
- Detailed Description
- Specifications
Elastic cushioning enhances shock absorption, protecting both the cylinder and the surrounding machinery
Constructed from durable aluminium, offering lightweight yet robust performance
Double-acting principle allows for efficient operation in both extension and retraction
Wide operating temperature range supports diverse working conditions
Minimal ambient temperature requirement ensures reliability even in challenging climates
Standard industry scraper material enhances durability and performance longevity
Piston rod thread accommodates a range of attachments for custom applications
Brand | AVENTICS |
Manufacturer Series | KHZ |
Model Number p | 0822010761 |
Bore | 50mm |
Action | Double |
Stroke | 10mm |
Pneumatic Connection | G 1/8 |
Port Connection | G 1/8 |
Piston Rod Thread Gender | Female |
Cushioning Type | Elastic |
Maximum Operating Pressure | 10 bar |
Test Weight | 0.388 kg |
Stroke Interval Weight | 0.086 @ 10 mm kg/mm |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -25°C |
