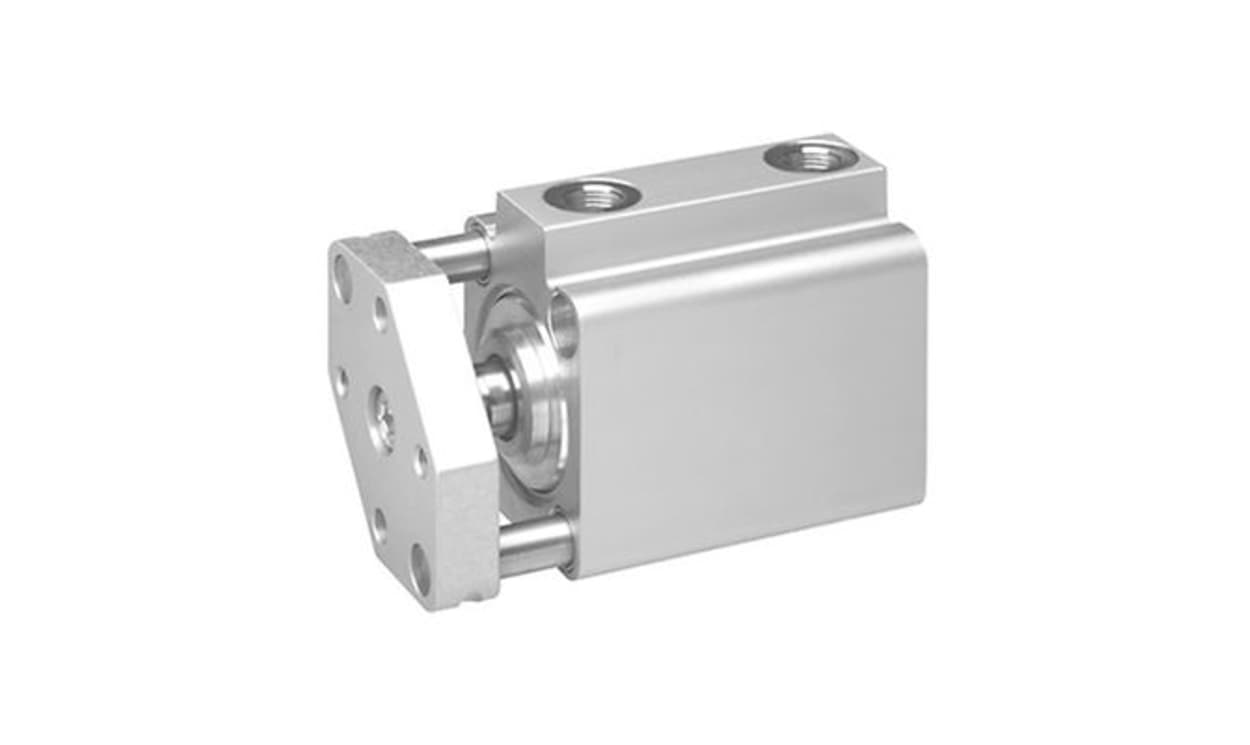

AVENTICS 0822010765 Pneumatic Piston Rod Cylinder - , 50mm Bore, 30mm Stroke, KHZ Series, Double Acting
- Detailed Description
- Specifications
Double-acting function delivers reliable performance during operation
Elastic cushioning minimises wear and prolongs the lifespan of the cylinder
Designed to meet industry standards for predictable and safe operation
Robust construction with aluminium components for durability in demanding environments
Operates efficiently across a wide temperature range, from -25°C to 80°C
Suitable for use with compressed air, ensuring compatibility with standard systems
Minimal ambient temperature requirements promote versatile use in varied conditions
Brand | AVENTICS |
Manufacturer Series | KHZ |
Model Number p | 0822010765 |
Stroke | 30mm |
Action | Double |
Bore | 50mm |
Port Connection | G 1/8 |
Pneumatic Connection | G 1/8 |
Piston Rod Thread Gender | Female |
Cushioning Type | Elastic |
Maximum Operating Pressure | 10 bar |
Maximum Operating Temperature | +80°C |
Test Weight | 0.388 kg |
Minimum Operating Temperature | -25°C |
Stroke Interval Weight | 0.086 @ 10 mm kg/mm |
