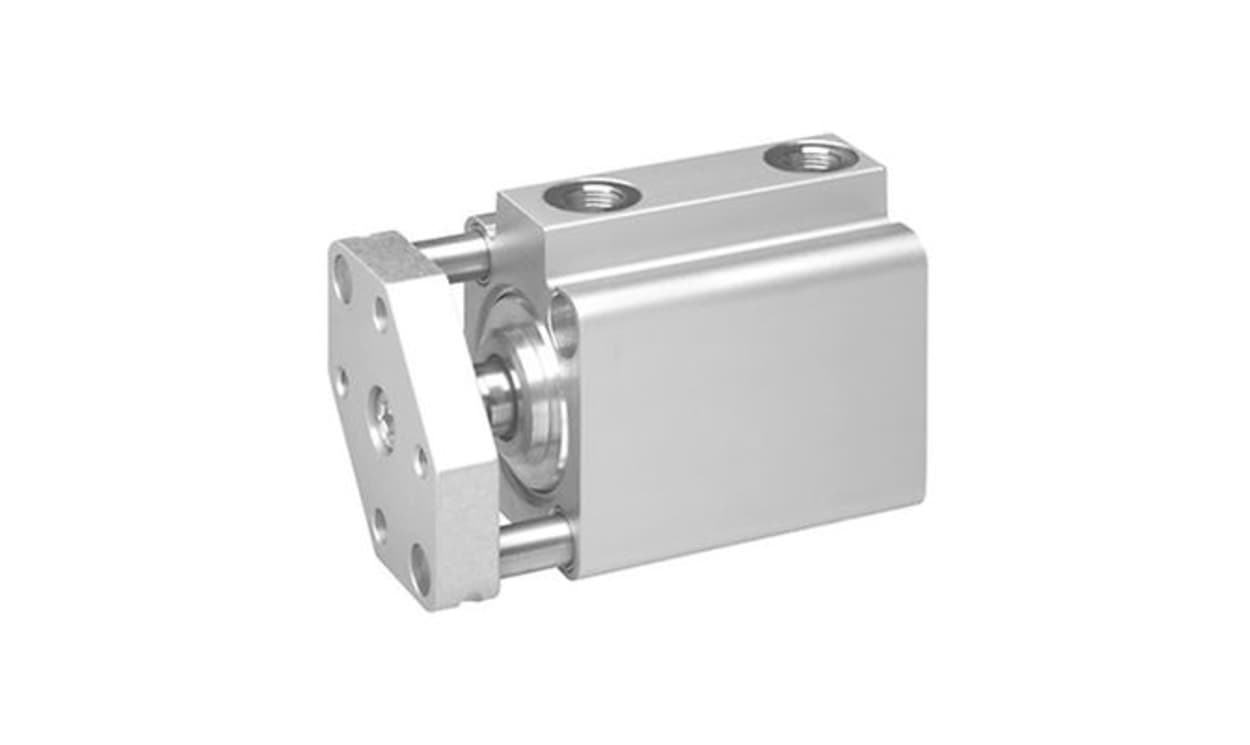

AVENTICS 0822010767 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 50 mm Bore, 50 mm Stroke, G 1/8

Name: AVENTICS 0822010767 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 50 mm Bore, 50 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010767
Availability: OutOfStock

Part Number : 0822010767

For a 50 mm bore with 50 mm of stroke, the AVENTICS 0822010767 is a double-acting KHZ series pneumatic cylinder that connects through G 1/8 and handles a maximum operating pressure of 10 bar.

50 mm bore × 50 mm stroke
Action: double acting (KHZ series)
G 1/8 pneumatic connection
Piston rod thread gender: female
Cushioning type: elastic
Temperature range: -25 °C to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from the Series KHZ is designed to cater to the needs of compact spaces, providing a robust solution for various machinery applications. With its unique double-acting mechanism, this cylinder ensures reliability and efficiency, making it suitable for industrial environments. Its elastic cushioning and standard industry scraper enhance both operational safety and performance, allowing seamless integration into existing setups. Crafted from high-quality materials, including stainless steel and aluminium, this product promises durability and longevity, even in demanding conditions. Additionally, it adheres to stringent environmental requirements, enabling it to operate within a wide temperature range while maintaining optimal functionality.

Designed for tight installation spaces to optimise machine design
Elastic cushioning provides additional protection and noise reduction
Non-rotating piston rod ensures consistent performance under varying loads
Made from robust materials for increased durability and resistance to wear
Effective operation within a wide temperature range enhances flexibility in application
Low impact energy supports energy-efficient operation during cycles
Complies with industry standards for reliability and safety in various environments
Max particle size of 50 μm makes it well-suited for environments with stringent cleanliness requirements

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010767
Bore	50mm
Stroke	50mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.388 kg
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.086 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C

AVENTICS 0822010767 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 50 mm Bore, 50 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010767 Datasheet - 0822010767 A700000012571785
