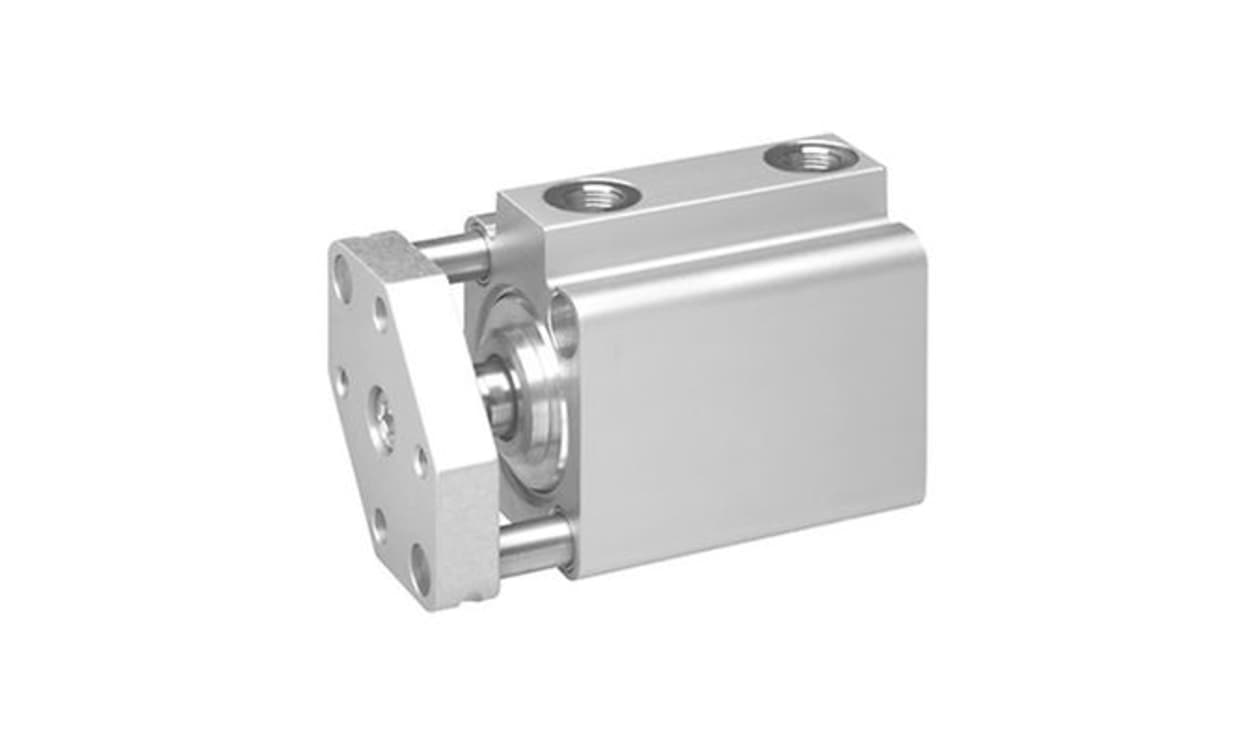

AVENTICS 0822010772 Pneumatic Piston Rod Cylinder - , 63mm Bore, 15mm Stroke, KHZ Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822010772 Pneumatic Piston Rod Cylinder - , 63mm Bore, 15mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010772 Pneumatic Piston Rod Cylinder - , 63mm Bore, 15mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010772
Availability: OutOfStock

Part Number : 0822010772

Availability: Sold out

Detailed Description
Specifications

The Aventics Series KHZ short-stroke cylinder is expertly engineered for optimal performance in minimal spaces. This non-standard cylinder masterfully balances compact design with exceptional functionality, making it an ideal solution for industries where space is at a premium. Its double-acting mechanism ensures reliable operation, while the elastic cushioning technology enhances safety and efficiency during machine integration. The rugged construction, featuring aluminium and stainless steel components, guarantees durability in demanding environments, whereas the specified pressure and temperature ranges ensure consistent performance. Designed for use with compressed air, this innovative cylinder stands out with its ability to accommodate various environmental requirements, making it a versatile choice for a range of applications.

Compact design optimised for tight installation spaces
Non-standard configurations enhance machine integration
Double-acting functionality guarantees consistent operation
Elastic cushioning technology promotes safe and smooth cycling
Constructed from durable materials ensuring longevity in industrial settings
Customisable options available through AVENTICS sales offices
Designed for compatibility with a wide range of environmental conditions
Efficient use of compressed air for reliable cylinder performance

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010772
Stroke	15mm
Bore	63mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.636 kg
Stroke Interval Weight	0.114 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
