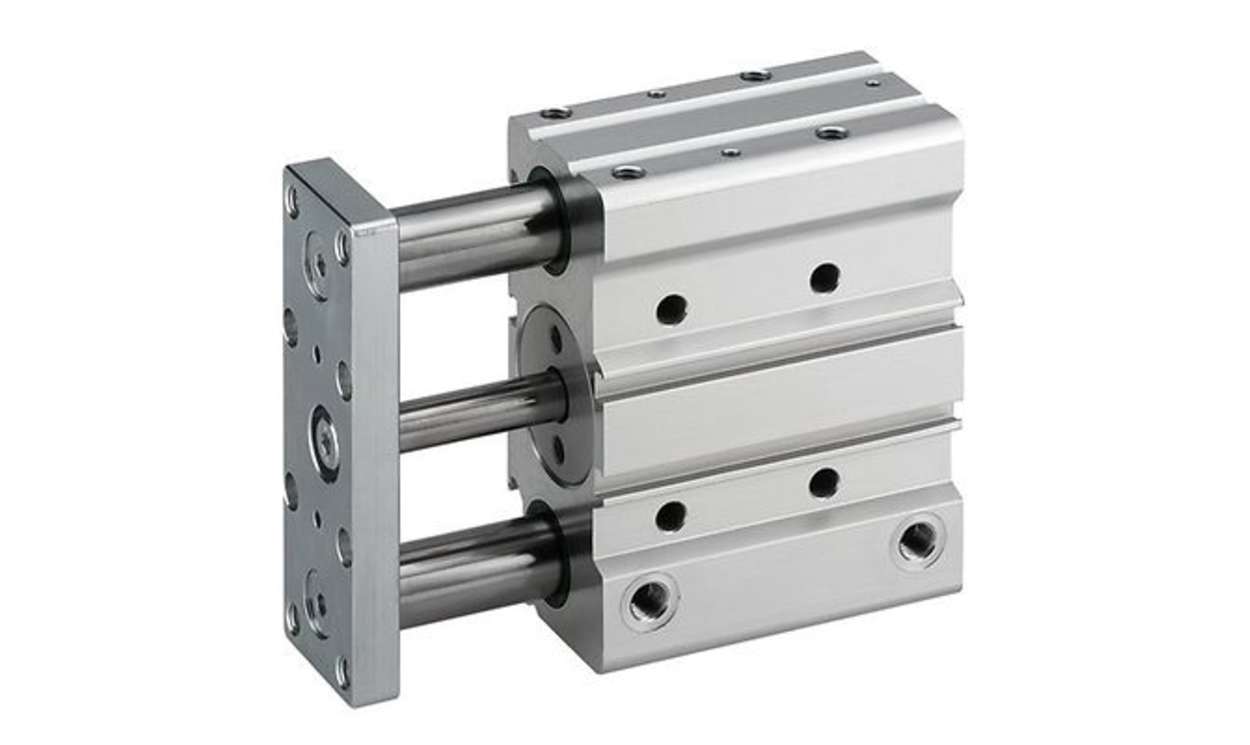

Name: AVENTICS 0822063003 Pneumatic Guided Cylinder - , 25mm Bore, 40mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822063003
Availability: OutOfStock

Part Number : 0822063003

Availability: Sold out

Detailed Description
Specifications

The Aventics GPC-BV series guide cylinder embodies the perfect blend of strength and precision, designed to meet the demands of industrial applications. Engineered with high side load capacity and exceptional torsion protection, this cylinder ensures reliable performance even under challenging conditions. The robust design features durable drive and guide rods that are tailored to absorb high torque and transverse forces, making it ideal for various setups. It operates on a double-acting functional principle, providing versatile and effective movement across a range of tasks. This product is not only efficient but also supports a wide temperature range, making it suitable for diverse environments. Its lightweight yet sturdy construction, combined with advanced cushioning, optimizes performance while ensuring ease of installation and maintenance. The GPC-BV series sets a standard for reliability and innovation in the field of automation.

High side load capacity enhances operational reliability
Precision-engineered drive and guide rods improve torque and force absorption
Double-acting functional principle provides dynamic movement
Wide temperature range ensures adaptability in various environments
Durable construction minimizes wear and extends service life
Optimised cushioning improves impact performance and reduces noise
Lightweight design facilitates easier handling and installation

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822063003
Bore	25mm
Action	Double
Stroke	40mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
ISO Standard	ISO 4762
Maximum Operating Temperature	+70°C
Piston Speed	800mm/s
Minimum Operating Temperature	-10°C
