AVENTICS 0822064002 Pneumatic Guided Cylinder - , 32mm Bore, 75mm Stroke, GPC Series, Double Acting

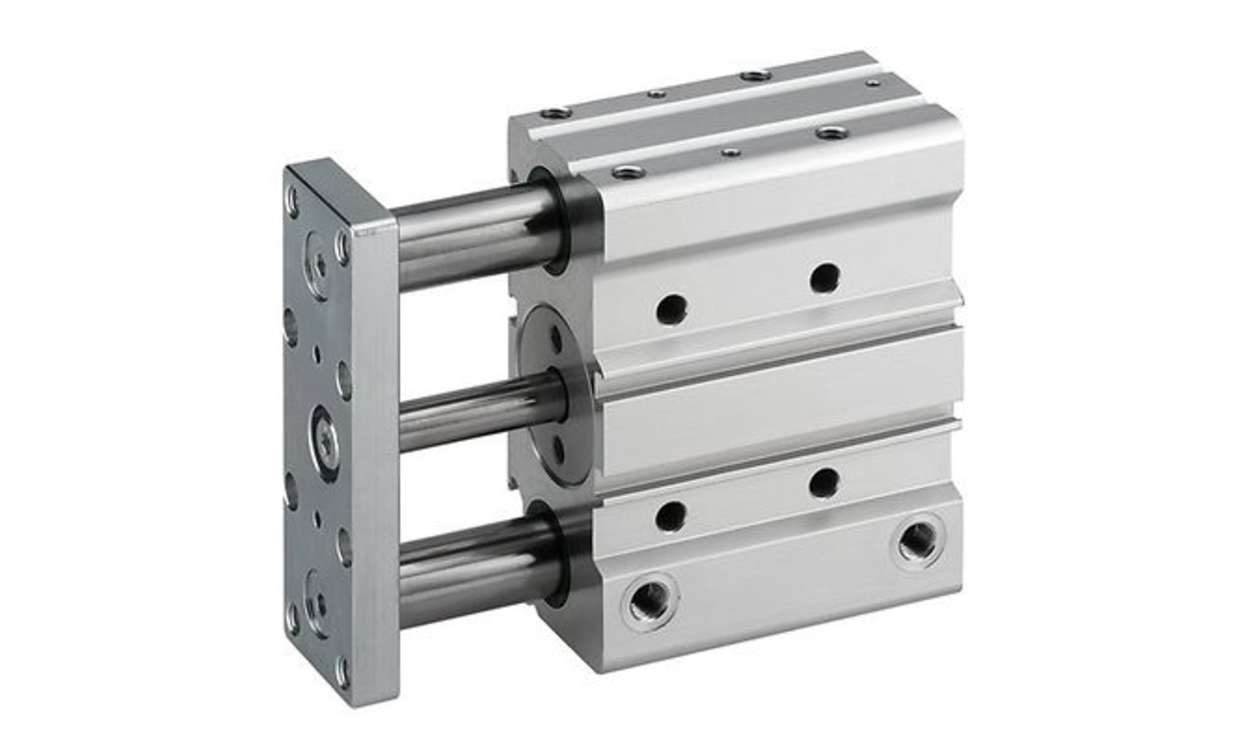

Name: AVENTICS 0822064002 Pneumatic Guided Cylinder - , 32mm Bore, 75mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822064002
Availability: OutOfStock

Part Number : 0822064002

Availability: Sold out

Detailed Description
Specifications

The Aventics guide cylinder from aventics offers superior functionality and reliability essential for industrial applications. Designed within the Series GPC-BV, this innovative product excels in high side load capacity and torsion protection. The robust construction of the drive and guide rods ensures precision in performance while effectively absorbing high torque and transverse forces. With a double-acting functional principle, users can take advantage of enhanced efficiency in various operational environments. Its versatile design accommodates a minimum working pressure of 1.3 bar and a maximum of 8 bar, making it suitable for a wide range of tasks. The guide cylinder maintains optimal performance within different temperature conditions, promoting a consistent operating range crucial for demanding applications. The advanced cushioning system also ensures a gentle and controlled motion during operation, thus extending the product's lifespan.

High side load capacity enhances stability in challenging environments
Torsion protection safeguards against structural damage during operation
Precision-engineered drive and guide rods ensure accurate performance
Double-acting functional principle increases efficiency in movement
Robust construction allows for reliable operation under various conditions
Suitable for a wide range of industrial applications, ensuring versatility
Advanced cushioning system provides smooth and controlled motion
Manufactured from durable materials to withstand wear and tear
Maintains optimal function across a broad temperature range

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822064002
Action	Double
Bore	32mm
Stroke	75mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
Maximum Operating Temperature	+70°C
Piston Speed	600mm/s
Minimum Operating Temperature	-10°C
