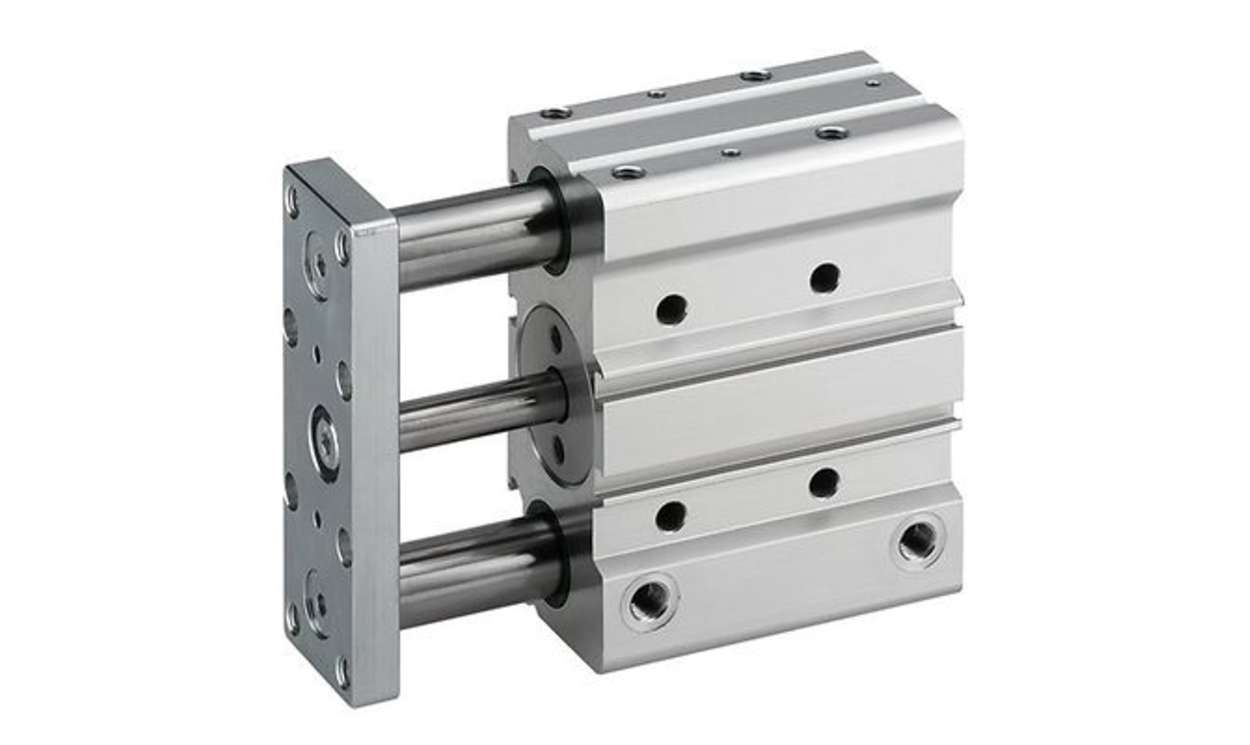

AVENTICS 0822066100 Pneumatic Guided Cylinder - , 50mm Bore, 25mm Stroke, GPC Series, Double Acting

Name: AVENTICS 0822066100 Pneumatic Guided Cylinder - , 50mm Bore, 25mm Stroke, GPC Series, Double Acting
Brand: Aventics
SKU: 0822066100
Availability: OutOfStock

Part Number : 0822066100

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics guide cylinder series GPC-BV is designed for applications requiring reliable performance with high side load capacity. Engineered with robust and precise drive and guide rods, this innovative product excels in absorbing transverse forces and delivering exceptional torque. Its double-acting functional principle ensures optimal efficiency and effectiveness in diverse industrial environments. With a wide range of stroke options and the ability to accommodate various sensor series, the GPC-BV is suitable for multiple applications. The cylinder is anodised for protection against wear and tear, ensuring durability while maintaining its performance standards. This product is ideal for industries demanding precise control and high reliability in pneumatic systems.

High side load capacity enhances structural integrity
Robust construction ensures longevity in demanding environments
Optimised for torsion protection, contributing to safe operation
Versatile stroke options allow for flexible use in varied applications
Designed with a double-acting principle for improved efficiency
Lightweight aluminium housing aids in easy installation
Easily integrates with various sensor series to enhance functionality
Magnetic piston technology promotes precise and accurate movement

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822066100
Bore	50mm
Stroke	25mm
Action	Double
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+70°C
Piston Speed	600mm/s
Minimum Operating Temperature	-10°C

AVENTICS 0822066100 Pneumatic Guided Cylinder - , 50mm Bore, 25mm Stroke, GPC Series, Double Acting

DOWNLOAD CATALOG

0822066100 Datasheet - 0822066100 A700000012556367

0822066100 Datasheet - 0822066100 A700000012571559
