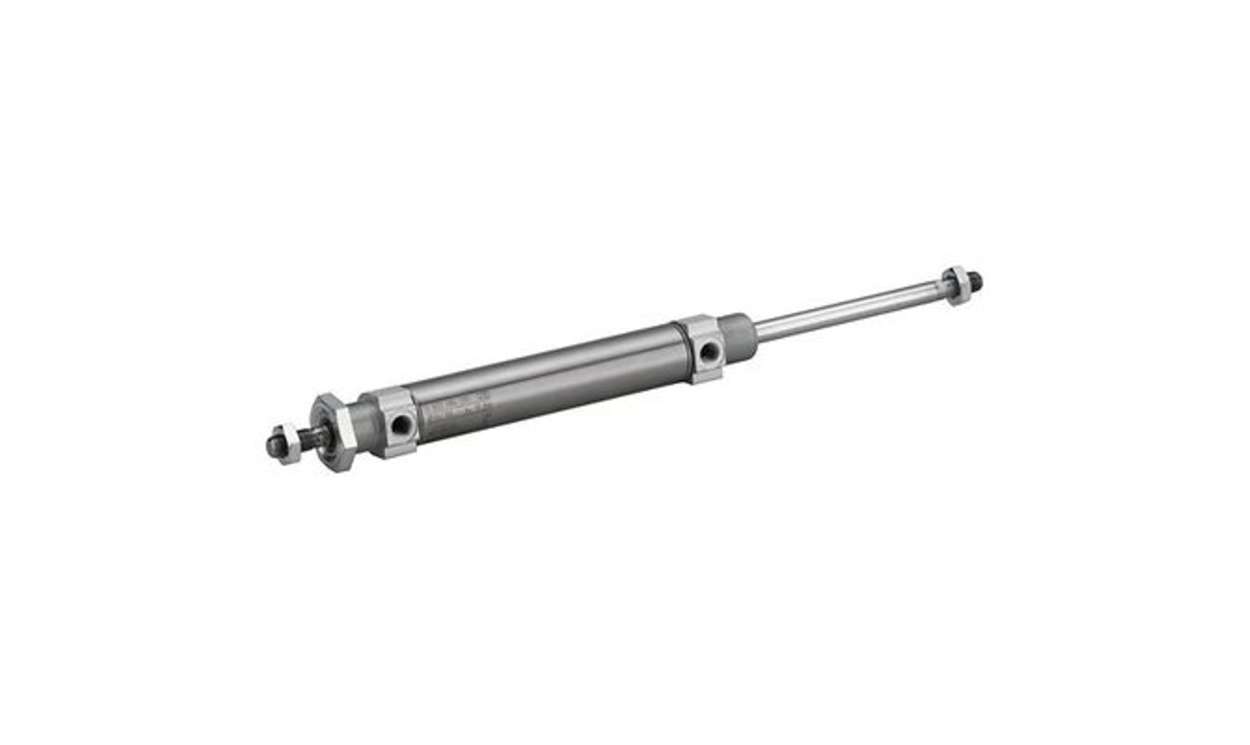

AVENTICS 0822081205 Roundline Cylinder - , 12mm Bore, 100mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822081205 Roundline Cylinder - , 12mm Bore, 100mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822081205
Availability: OutOfStock

Part Number : 0822081205

Availability: Sold out

Detailed Description
Specifications

The Aventics Series MNI Mini cylinder represents an exemplary blend of compact design and robust performance, ideally suited for general machine construction. Engineered with precision, this double-acting cylinder follows ISO 6432 standards and is crafted for environments demanding durability and extended service life. Its engineering excellence is complemented by elastic cushioning, ensuring smooth operation while minimizing wear. The cylinder's environmental specifications meet industry standards, making it adaptable for various applications. With a comprehensive temperature range and optional ATEX certification, it's versatile enough for both standard and challenging conditions. This product is your go-to solution when efficiency and reliability are paramount in automated processes.

Compact design optimises space without compromising on performance
Elastic cushioning significantly reduces noise and vibration during operation
Designed for industry standards, ensuring interoperability with existing systems
Versatile temperature range supports operation in diverse environments
Double-acting functionality increases operational efficiency and force application
ATEX certification offers added safety for explosive atmospheres
Magnetic piston option available for added sensing capabilities
Robust materials enhance the lifespan, reducing the need for frequent replacements

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822081205
Bore	12mm
Action	Double
Stroke	100mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
