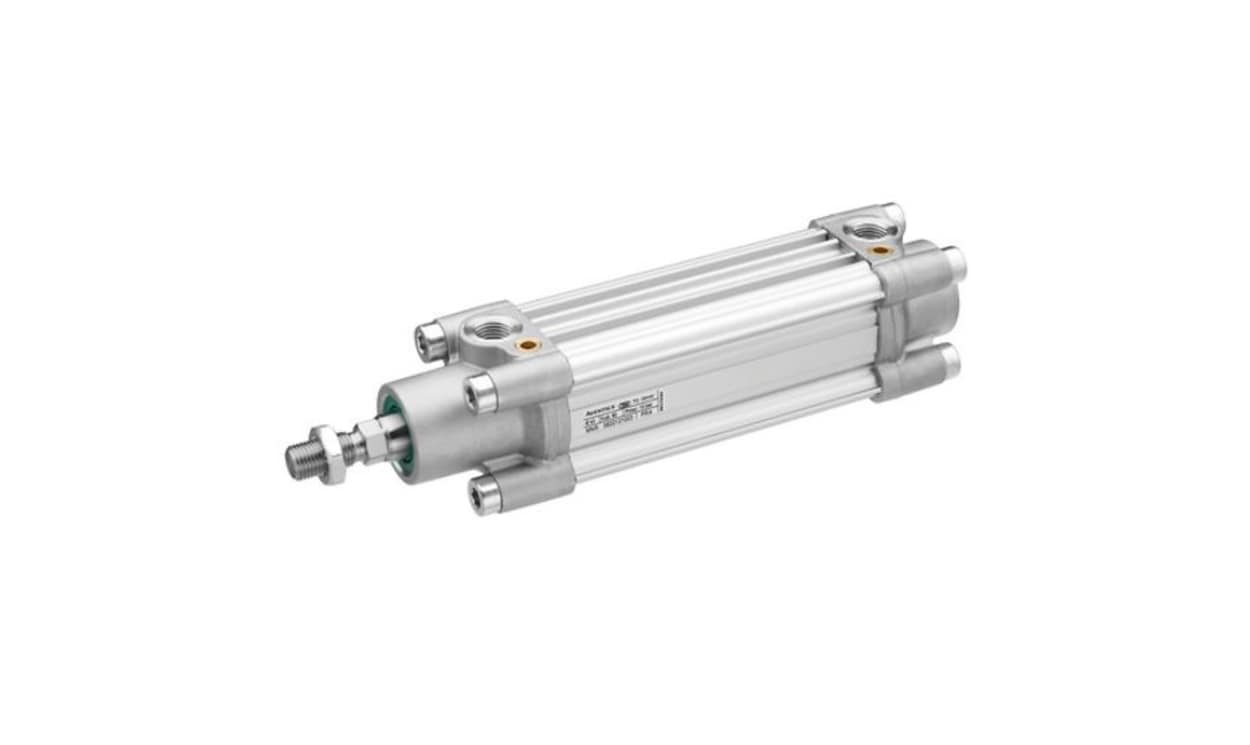

AVENTICS 0822125010 Pneumatic Piston Rod Cylinder - , 100mm Bore, 400mm Stroke, PRA Series, Double Acting
- Detailed Description
- Specifications
Integrated sensor slots for advanced functionality
Complies with ISO 15552 standards for industrial reliability
Suitable for various industries, ensuring widespread applicability
Double-acting functionality optimises operational efficiency
Pneumatic adjustable cushioning improves control and performance
Robust materials provide enhanced durability for long-term use
Wide temperature operational range protects against extreme conditions
Pressure and force specifications tailored for diverse tasks
Available with ATEX options for hazardous environments
Brand | AVENTICS |
Manufacturer Series | PRA |
Model Number p | 0822125010 |
Stroke | 400mm |
Bore | 100mm |
Action | Double |
Port Connection | G 1/2 |
Pneumatic Connection | G 1/2 |
Piston Rod Thread Gender | Male |
Cushioning Type | Pneumatic Cushioning |
Maximum Operating Pressure | 10 bar |
ISO Standard | 15552 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
