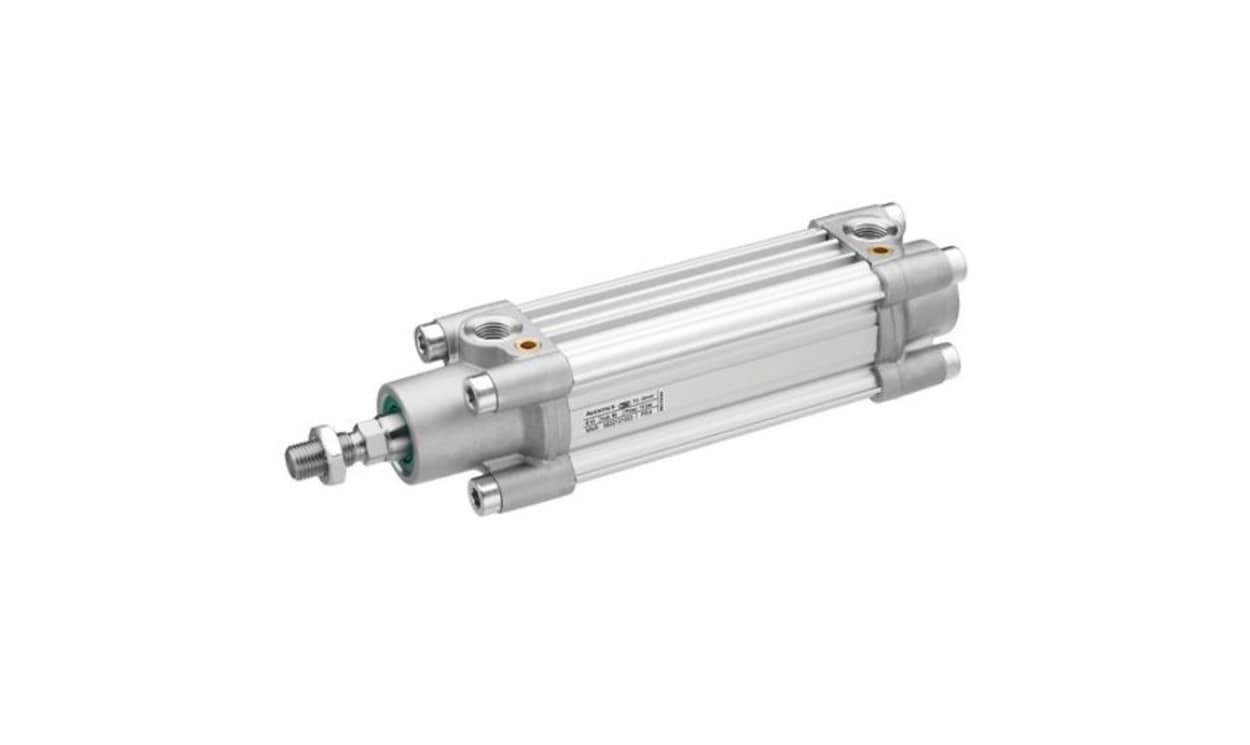

AVENTICS 0822125011 Pneumatic Piston Rod Cylinder - , 100mm Bore, 500mm Stroke, PRA Series, Double Acting

Name: AVENTICS 0822125011 Pneumatic Piston Rod Cylinder - , 100mm Bore, 500mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: 0822125011
Availability: OutOfStock

Part Number : 0822125011

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics PRA series profile cylinder is designed with precision, efficiency, and versatility in mind. This ISO 15552 compliant cylinder boasts a compact design with integrated sensor slots, making it suitable for a variety of industrial applications. Ideal for general automation, machine construction, and specific industry environments, this cylinder performs effectively under varying conditions. It ensures reliability with features such as pneumatic adjustable cushioning and a robust construction from high-quality materials. Designed for robustness and adaptability, this cylinder handles pressures up to 10 bar, showcasing its capability in demanding settings. The product is also available with ATEX certification options, making it a safe choice for potentially explosive atmosphere applications. Effortlessly optimising productivity, it combines high performance with a user-friendly design, making it an essential addition to any automation system.

Compact design optimises space without compromising on performance
Suitable for various industries, enhancing flexibility in applications
Pneumatic adjustable cushioning ensures smooth operation and longevity
High-quality material construction improves durability and reliability
Handles a wide temperature range, catering to diverse environmental conditions
Integrated sensor slots allow for easy installation of position sensors
ATEX certification options enhance safety in explosive environments
User-friendly design simplifies maintenance and servicing requirements

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	0822125011
Action	Double
Stroke	500mm
Bore	100mm
Port Connection	G 1/2
Pneumatic Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822125011 Pneumatic Piston Rod Cylinder - , 100mm Bore, 500mm Stroke, PRA Series, Double Acting

DOWNLOAD CATALOG

0822125011 Datasheet - 0822125011 A700000012556743

0822125011 Datasheet - 0822125011 A700000012559391
