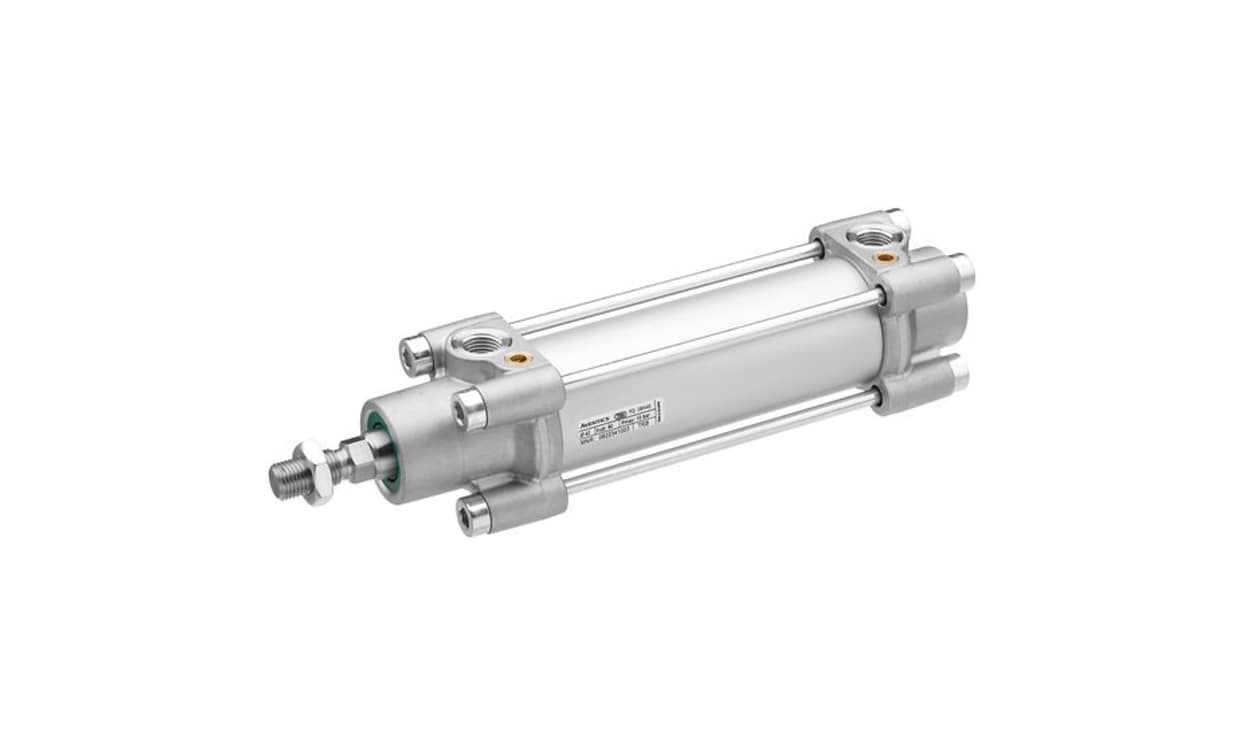

AVENTICS 0822206206 | Pneumatic Piston Rod Cylinder | 125 mm Bore, 160 mm Stroke, TRB Series
Part Number : 0822206206
This double-acting AVENTICS pneumatic piston rod cylinder, 0822206206, belongs to the TRB series and combines a 125 mm bore with a 160 mm stroke. For the 160 mm stroke variant, AVENTICS lists pneumatic cushioning, G 1/2 ports and ISO/VDMA conformity.
- Size 125 x 160 mm (bore x stroke)
- Rated -25 to +80 °C (125 x 160 mm)
- Standard: ISO/VDMA on the 160 mm stroke unit
- Port and pneumatic connection: G 1/2 (125 x 160 mm)
- End cushioning type: pneumatic (125 x 160 mm)
- 10 bar maximum pressure (125 x 160 mm)
For pricing, please contact our experts.
