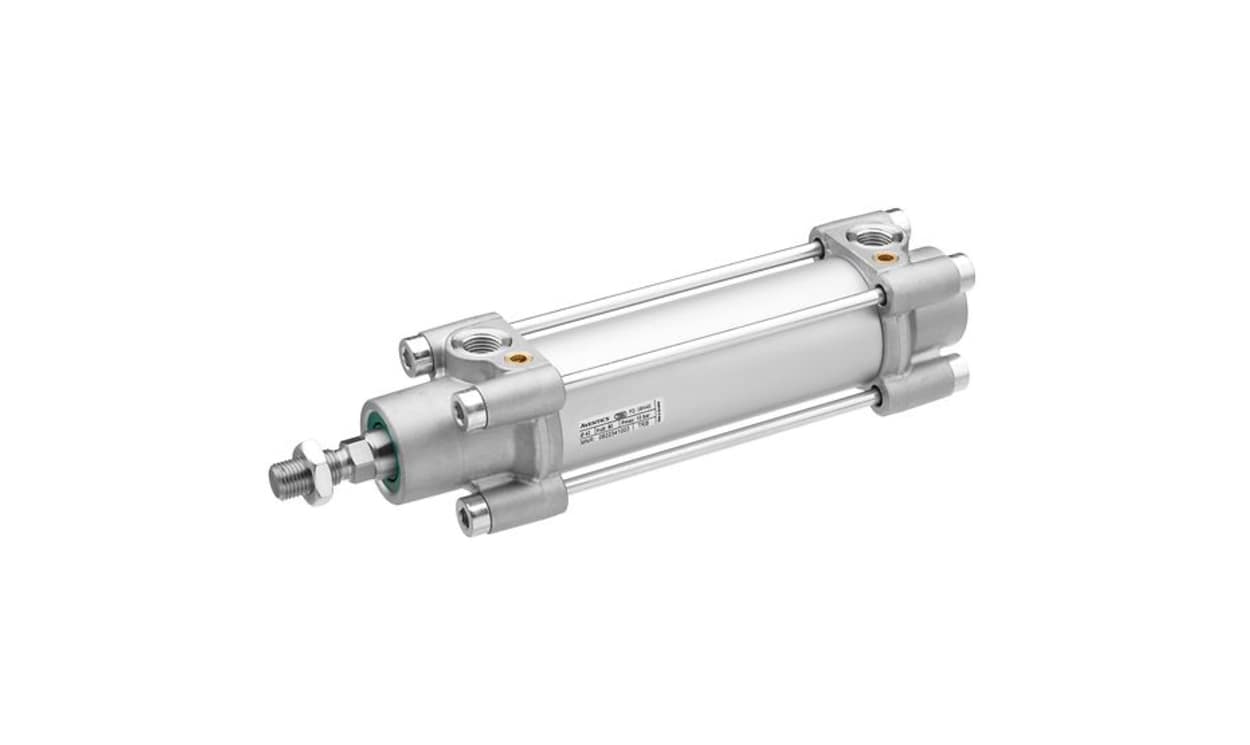

AVENTICS 0822206209 | Pneumatic Piston Rod Cylinder | 125 mm Bore, 320 mm Stroke, TRB Series
Part Number : 0822206209
Offering 320 mm of stroke from a 125 mm bore, the AVENTICS 0822206209 is a double-acting pneumatic piston rod cylinder in the TRB range. For the 320 mm stroke variant, AVENTICS lists pneumatic cushioning, G 1/2 ports and ISO/VDMA conformity.
- 125 mm bore, 320 mm stroke (0822206209)
- Air connection thread G 1/2 (125 x 320 mm)
- Pneumatic cushioning on the 320 mm stroke unit
- Maximum operating pressure: 10 bar on the 320 mm stroke unit
- Temperature range -25 to +80 °C on the 320 mm stroke unit
- ISO/VDMA cylinder design on the 320 mm stroke unit
For pricing, please contact our experts.
