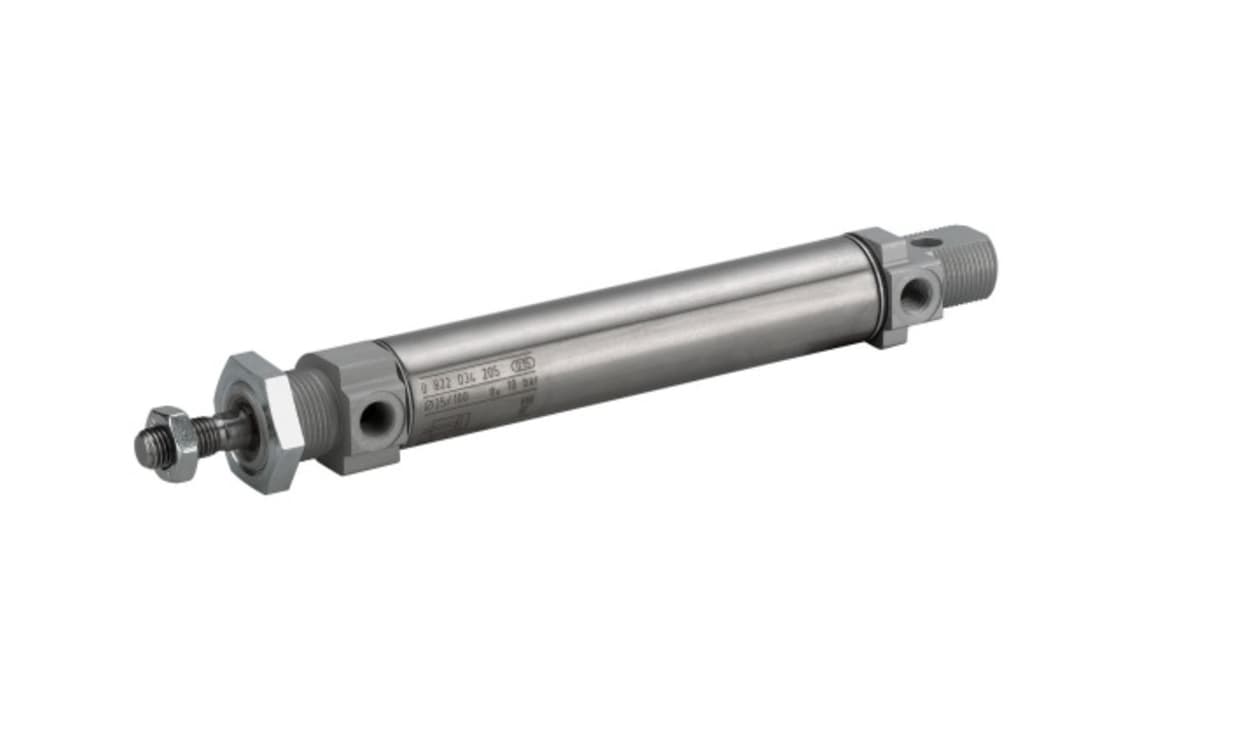

AVENTICS 0822233007 Roundline Cylinder - , 20mm Bore, 160mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822233007 Roundline Cylinder - , 20mm Bore, 160mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822233007
Availability: OutOfStock

Part Number : 0822233007

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics mini cylinder from the series MNI exemplifies exceptional engineering tailored for general machine construction. Designed to meet ISO 6432 standards, this robust double-acting cylinder ensures longevity and reliability in industrial applications. The device features pneumatic adjustable cushioning, making it suitable for a variety of operational environments. With a maximum working pressure of 10 bar and an ambient temperature tolerance ranging from -25 °C to 80 °C, it effectively handles the demands of diverse scenarios. Its careful material selection, including stainless steel for the piston rod and aluminum for the front cover, underscores its durability. The MNI mini cylinder offers versatility with a stroke length capability up to 1100 mm, accommodating differing project requirements. This model not only adheres to industry standards but also enhances performance through its innovative design.

Robust construction ensures a long service life
Pneumatic adjustable cushioning enhances operational versatility
Compatible with various industrial applications
Designed with a safety-certified structure for reliable performance
Lightweight design contributes to easy installation and handling
Environmentally adaptable to a wide temperature range
Efficient energy cushioning for smoother operation
Precision-engineered for consistent performance across applications

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822233007
Action	Double
Bore	20mm
Stroke	160mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822233007 Roundline Cylinder - , 20mm Bore, 160mm Stroke, MNI Series, Double Acting

DOWNLOAD CATALOG

0822233007 Datasheet - 0822233007 A700000012556921

0822233007 Datasheet - 0822233007 A700000012572030
