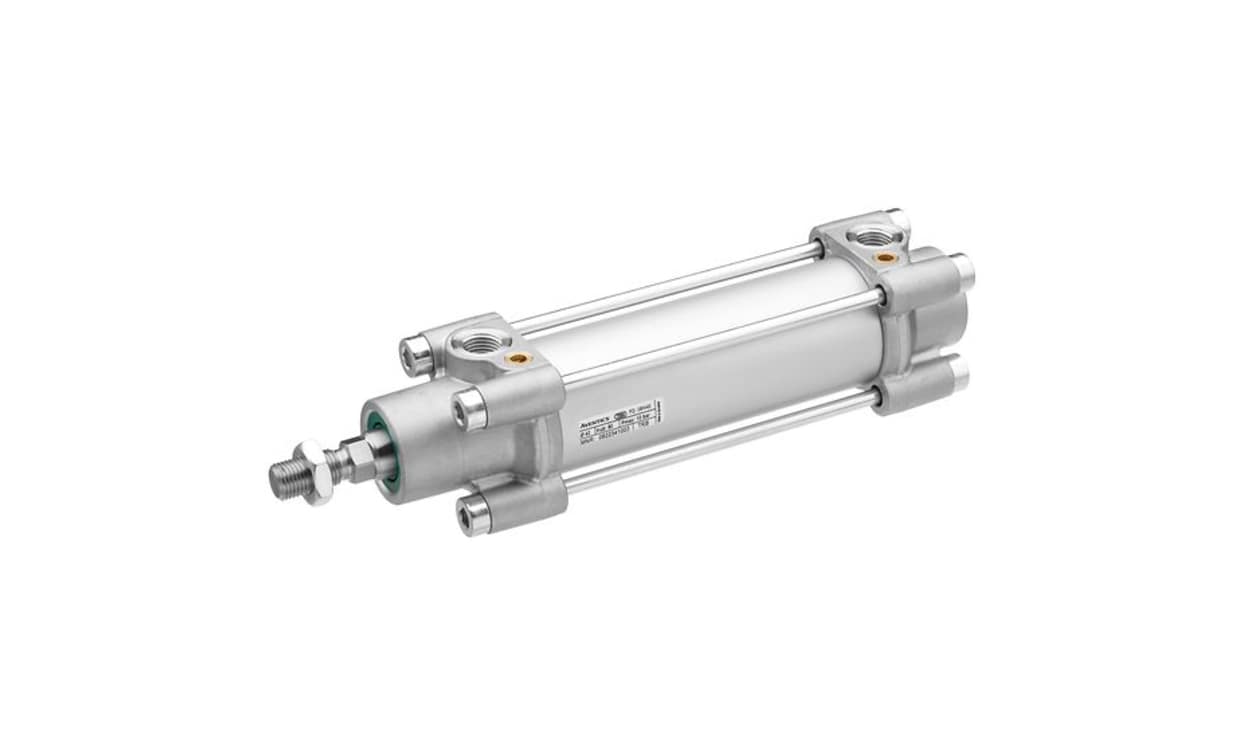

AVENTICS 0822242400 Pneumatic Guided Cylinder - , 50mm Bore, 25mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822242400 Pneumatic Guided Cylinder - , 50mm Bore, 25mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822242400
Availability: OutOfStock

Part Number : 0822242400

Availability: Sold out

Detailed Description
Specifications

The Aventics TRB series tie rod cylinder, engineered to ISO 15552 standards, excels in heavy-duty industrial applications. This robust cylinder is ideal for sectors like automotive, steel, and mining, making it a reliable choice for demanding environments. With a design focused on durability and performance, it features a double-acting functional principle and pneumatic adjustable cushioning to optimise operation. The TRB cylinder, with a piston diameter of 50 mm and a maximum stroke of up to 2100 mm, provides the versatility needed for various applications. It also meets rigorous environmental standards, ensuring it performs efficiently across a temperature range of -10 °C to 150 °C. Designed with premium materials, this cylinder promises longevity and minimal maintenance, making it an invaluable asset for your industrial processes.

Designed for heavy-duty applications across multiple industries
Pneumatic cushioning adjustable for enhanced performance
Constructed to withstand harsh environmental conditions
Supports a wide operational pressure range for flexibility
Maximises piston force output with efficient design
Provides reliable operation with double-acting functionality
Constructed with top-grade materials for durability
Meets industry standard for superior reliability

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822242400
Action	Double
Bore	50mm
Stroke	25mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+150°C
Minimum Operating Temperature	-10°C
