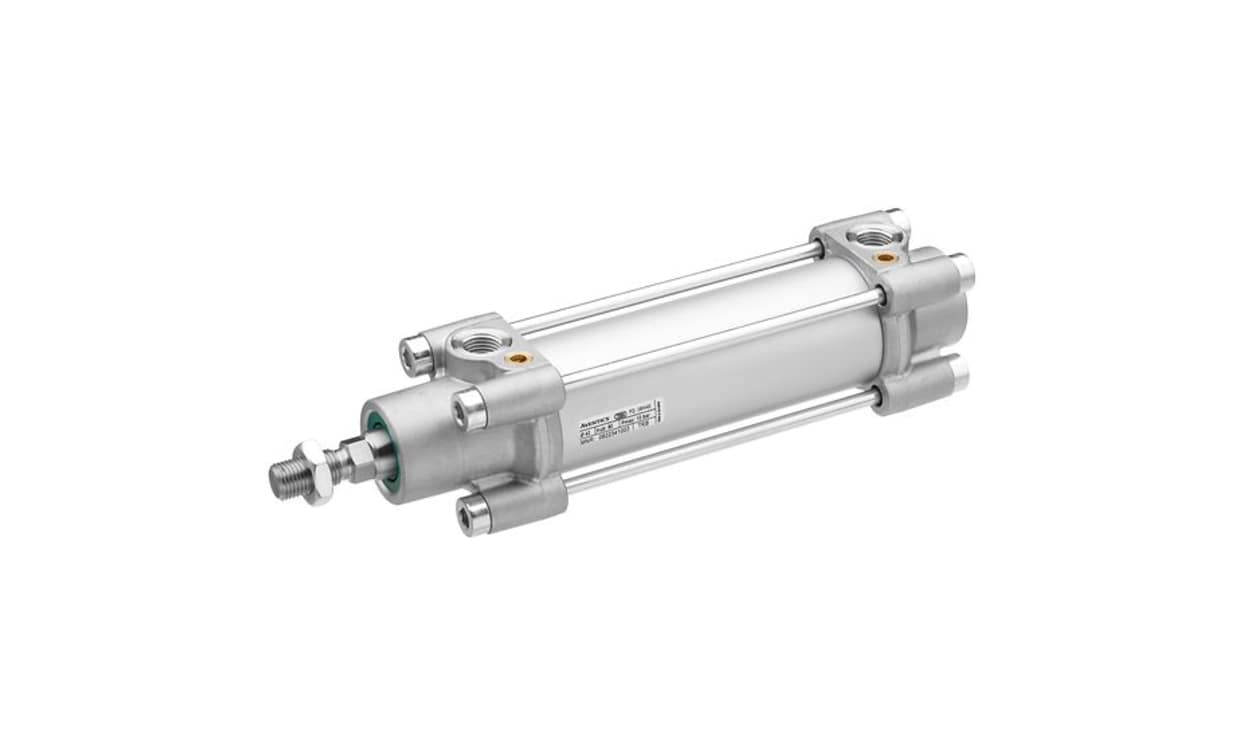

AVENTICS 0822243405 Pneumatic Piston Rod Cylinder - , 63mm Bore, 160mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822243405 Pneumatic Piston Rod Cylinder - , 63mm Bore, 160mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822243405
Availability: OutOfStock

Part Number : 0822243405

Availability: Sold out

Detailed Description
Specifications

The Aventics Tie Rod Cylinder from the series TRB is designed specifically to meet the demanding requirements of various industrial applications, including steel, automotive, and heavy-duty machinery. Engineered in accordance with ISO 15552 standards, this robust cylinder demonstrates remarkable performance and reliability under considerable stress. With a double-acting functional principle and pneumatic adjustable cushioning, it guarantees smooth operation while accommodating varying stroke lengths, up to a maximum of 2500 mm.

External thread piston rod simplifies attachment and maintenance
Lightweight design aids in reducing the overall machinery load
Compliant with industry standard environmental requirements

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822243405
Bore	63mm
Action	Double
Stroke	160mm
Port Connection	G 3/8
Pneumatic Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+150°C
