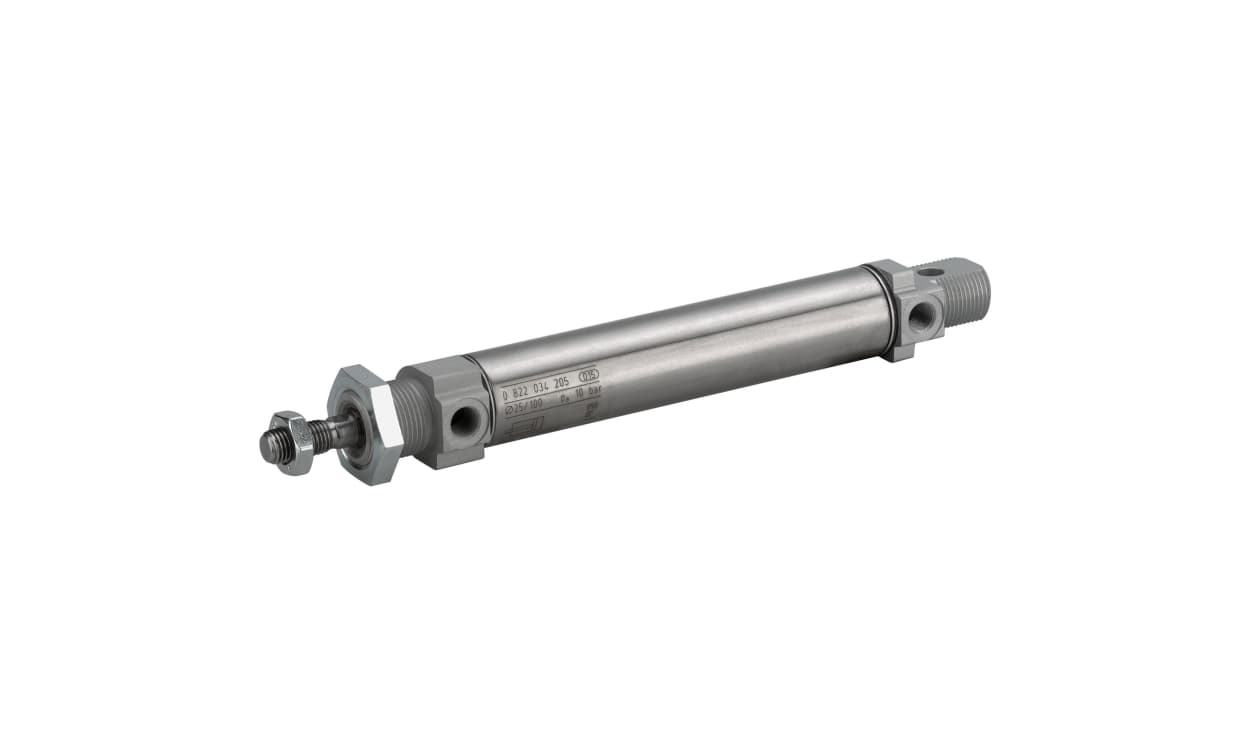

AVENTICS 0822330202 | Pneumatic Piston Rod Cylinder | 10 mm Bore, 25 mm Stroke, MNI Series

Name: AVENTICS 0822330202 | Pneumatic Piston Rod Cylinder | 10 mm Bore, 25 mm Stroke, MNI Series
Brand: Aventics
SKU: 0822330202
Availability: OutOfStock

Part Number : 0822330202

Part 0822330202 is a MNI series pneumatic piston rod cylinder from AVENTICS, built with a 10 mm bore and a stroke length of 25 mm. The 10 mm x 25 mm body follows ISO 6432 and uses M5 connections with elastic cushioning.

Bore x stroke: 10 mm x 25 mm (0822330202)
Conforms to ISO 6432 - MNI 10/25
M5 ports for the 10 mm bore
End cushioning type: elastic - MNI 10/25
Pressure limit 10 bar for the 10 mm bore
Operating temperature: -25 to +80 °C - MNI 10/25

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics MNI round cylinders for general machine construction are characterized by its robust and long service life. The pressure dew point must be at least 15 °C less than ambient and medium temperature and may not exceed 3 °C. Its configurations available as single/through piston rod, elastic/adjusted cushioning, with/ without magnetic detection, non-rotating piston rod, ATEX.

Robust and space saving design
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822330202
Stroke	25mm
Action	Double
Bore	10mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Dimensions	73.5 x 17mm
Length	73.5mm
Diameter	17mm
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
VDMA Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822330202 | Pneumatic Piston Rod Cylinder | 10 mm Bore, 25 mm Stroke, MNI Series

DOWNLOAD CATALOG

0822330202 Datasheet - 0822330202 A700000012653050

0822330202 Datasheet - 0822330202 A700000012653236
