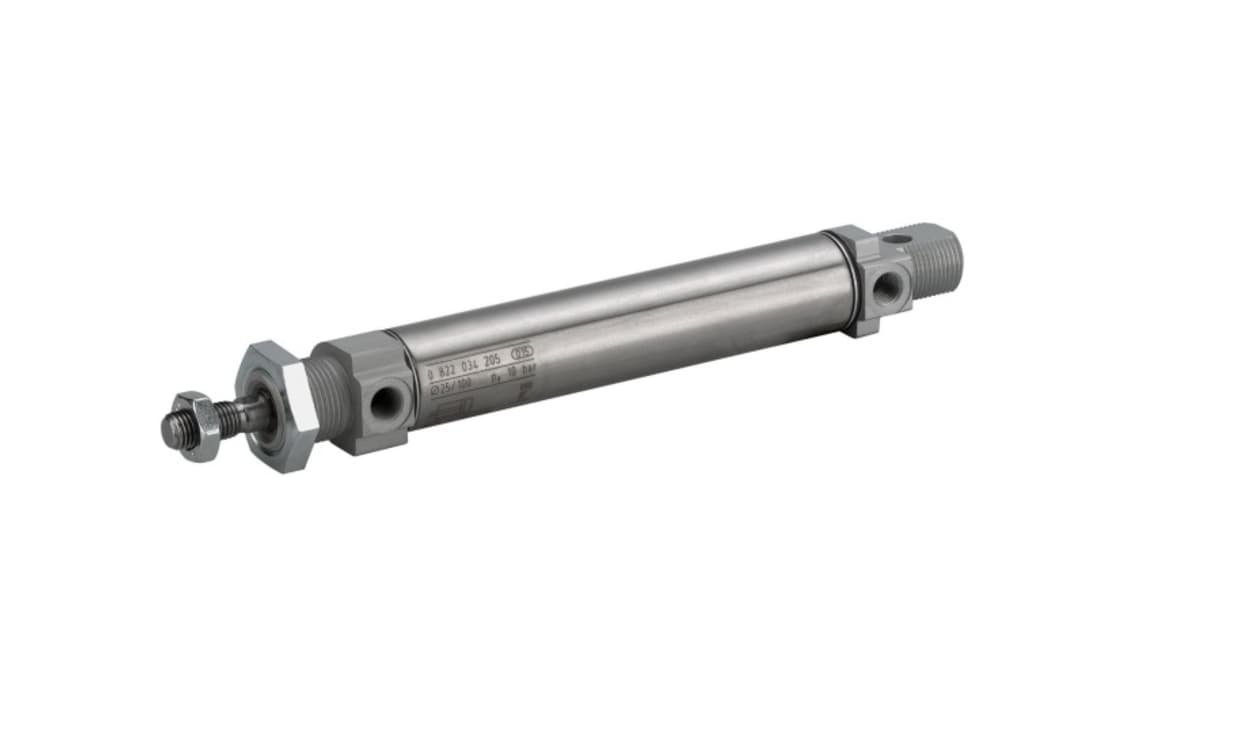

AVENTICS 0822331206 Roundline Cylinder - , 12mm Bore, 125mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822331206 Roundline Cylinder - , 12mm Bore, 125mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822331206
Availability: OutOfStock

Part Number : 0822331206

Availability: Sold out

Detailed Description
Specifications

The Aventics Mini Cylinder from the Series MNI exemplifies precision engineering designed specifically for diverse industrial applications. The robust construction ensures a long service life, making it ideal for general machine construction tasks. Engineered to conform with ISO 6432 standards, this double-acting cylinder features a compact design without compromising on performance. It is equipped with elastic cushioning for smooth operation and includes a magnetic piston, ensuring enhanced functionality.

Compatible with ATEX certification for hazardous locations
Standardised connection ports facilitate easy integration
Wide temperature range allows for versatility in different conditions
Lightweight design assists in reducing overall system weight

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822331206
Action	Double
Bore	12mm
Stroke	125mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
