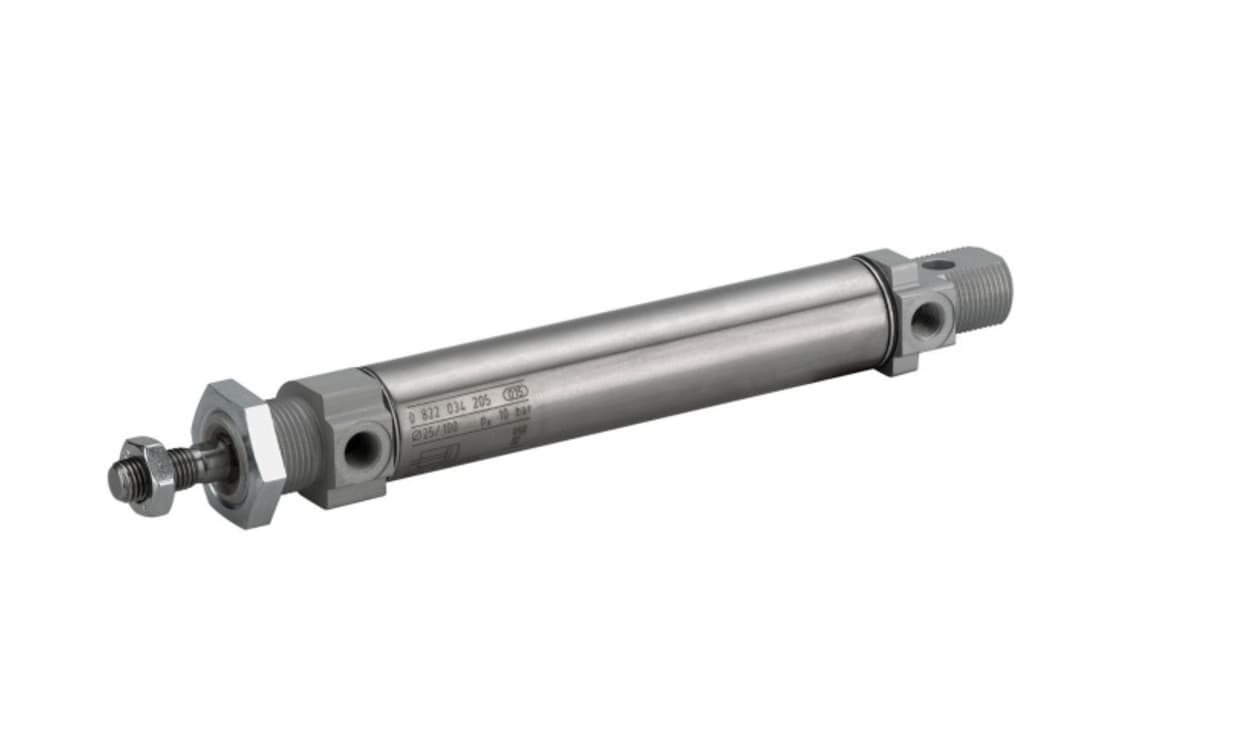

AVENTICS 0822332201 Roundline Cylinder - , 16mm Bore, 10mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822332201 Roundline Cylinder - , 16mm Bore, 10mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822332201
Availability: OutOfStock

Part Number : 0822332201

Availability: Sold out

Detailed Description
Specifications

The Aventics mini cylinder from aventics, part of the Series MNI, represents a pinnacle of engineering excellence for general machine construction. Designed to meet the ISO 6432 standard, it offers a robust construction and exceptional service life, making it a reliable choice for various industrial applications. The double-acting cylinder features elastic cushioning and a magnetic piston, ensuring smooth operation while accommodating a wide range of environmental conditions. With a broad ambient temperature tolerance and the option for ATEX certification, it is built to perform reliably in both standard and hazardous environments. Whether you’re looking to enhance operational efficiency or reduce maintenance costs, this mini cylinder stands out as a versatile solution, successfully marrying functionality with durability.

Offers a comprehensive stroke range of up to 800 mm for adaptable performance
Features a compact design that saves valuable installation space
Equipped with a standard industry scraper that enhances longevity
Allowable working pressures range up to 10 bar, offering flexible application options
Incorporates stainless steel and aluminium components for durability and resistance to wear
Fitted with magnetic sensors to enable precise position detection
Capable of withstanding extreme temperatures, from -25 °C to 80 °C, suitable for diverse operational settings
Low impact energy ensures minimal risk during machinery operation
Quick and easy installation reduces downtime and boosts productivity

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822332201
Action	Double
Bore	16mm
Stroke	10mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
