AVENTICS 0822332220 Roundline Cylinder - , 16mm Bore, 500mm Stroke, MNI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822332220 Roundline Cylinder - , 16mm Bore, 500mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822332220 Roundline Cylinder - , 16mm Bore, 500mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822332220
Availability: OutOfStock

Part Number : 0822332220

Availability: Sold out

Detailed Description
Specifications

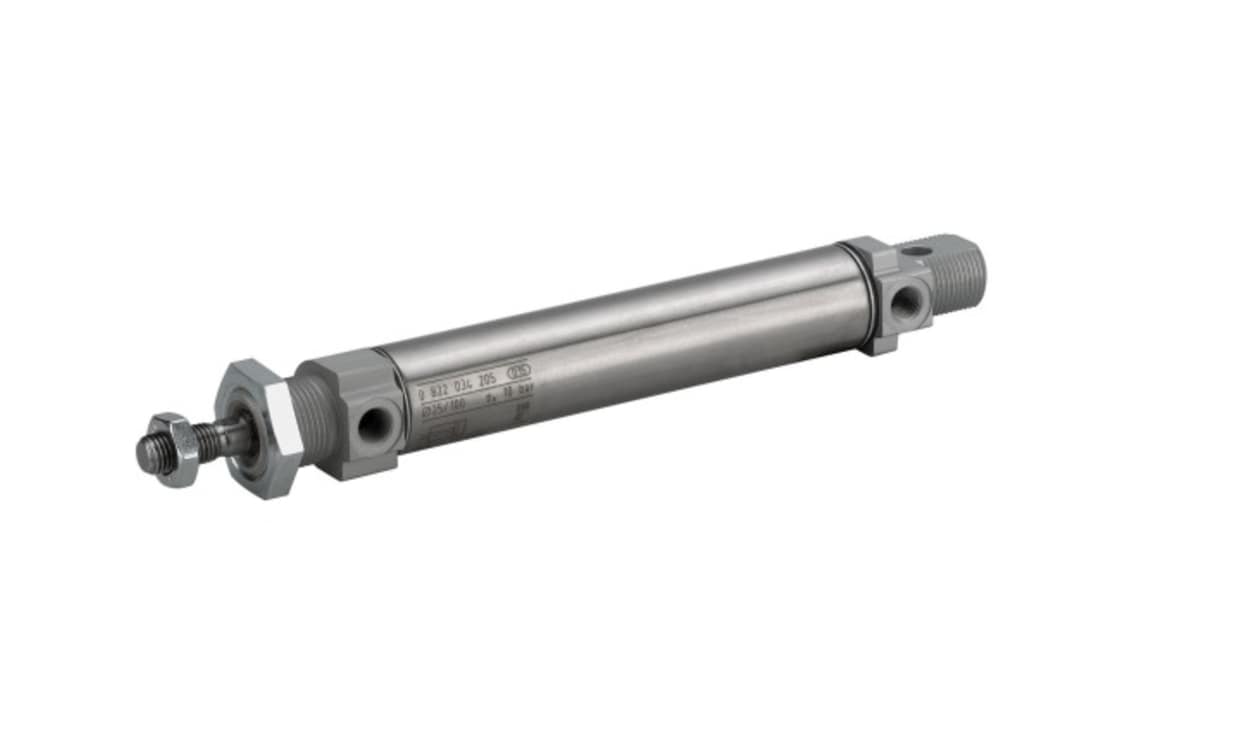

The Aventics MNI Mini cylinder is designed for versatility in general machine construction, offering a robust solution with a long service life. These cylinders adhere to ISO 6432 standards, making them a reliable choice for a variety of applications. With a double-acting functional principle, they ensure efficient operation and effective performance in any demanding environment. The AVENTICS Series MNI Mini cylinders incorporate a range of features such as elastic cushioning and a magnetic piston, enhancing their operational durability. The attention to detail in their design ensures compatibility with numerous industrial applications while guaranteeing optimal performance through varying conditions.

Constructed with a stainless steel piston rod for enhanced durability
Features a robust brass and aluminium piston construction
Incorporates polyurethane for reliable scraper material
ATEX certification options are available for hazardous environments
Offers a wide operating temperature range, making it suitable for diverse conditions
Designed for easy installation with external threading
Capable of withstanding maximum working pressures up to 10 bar
Precision engineering ensures optimal performance in high-stake applications
Lightweight design facilitates easy handling and installation
Compatible with oil content requirements for long-lasting reliability

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822332220
Bore	16mm
Stroke	500mm
Action	Double
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
