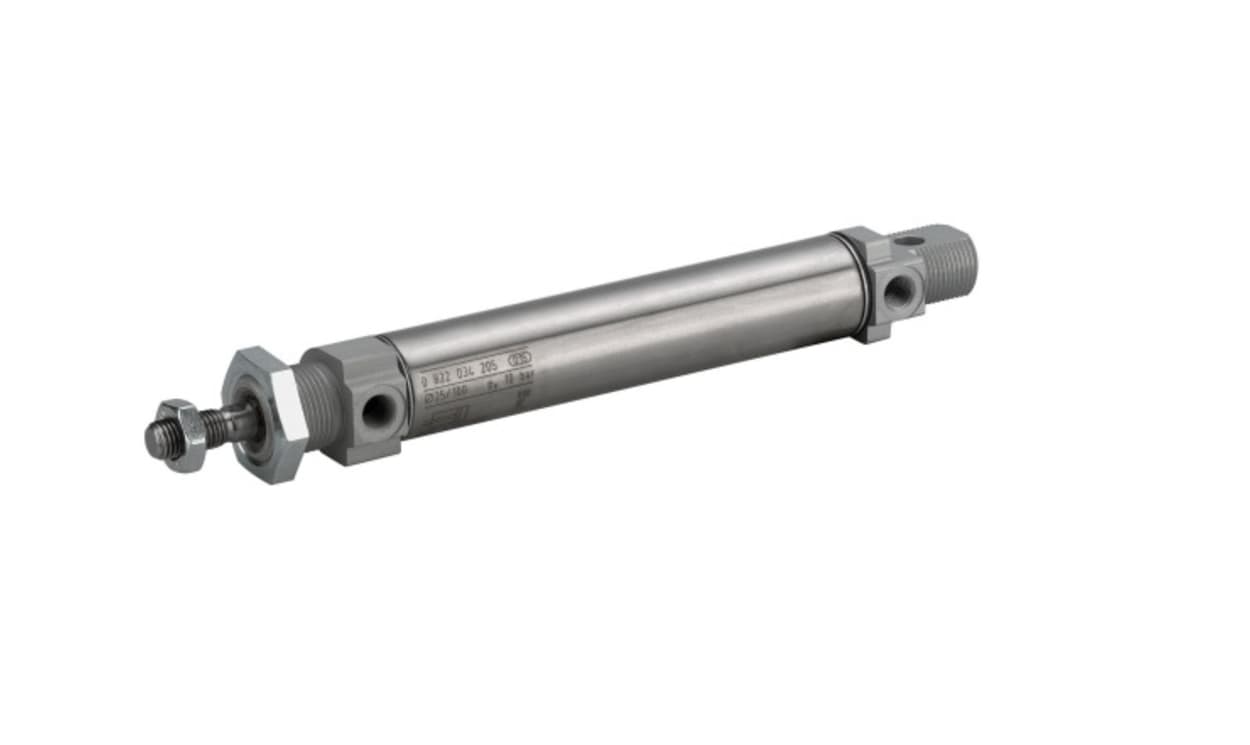

AVENTICS 0822334208 Roundline Cylinder - , 25mm Bore, 200mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822334208 Roundline Cylinder - , 25mm Bore, 200mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822334208
Availability: OutOfStock

Part Number : 0822334208

Availability: Sold out

Detailed Description
Specifications

The Aventics Mini Cylinder from the Series MNI exemplifies precision engineering designed specifically for diverse industrial applications. The robust construction ensures a long service life, making it ideal for general machine construction tasks. Engineered to conform with ISO 6432 standards, this double-acting cylinder features a compact design without compromising on performance. It is equipped with elastic cushioning for smooth operation and includes a magnetic piston, ensuring enhanced functionality.

Compatible with ATEX certification for hazardous locations
Standardised connection ports facilitate easy integration
Wide temperature range allows for versatility in different conditions
Lightweight design assists in reducing overall system weight

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822334208
Action	Double
Stroke	200mm
Bore	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
