AVENTICS 0822341008 Pneumatic Guided Cylinder - , 40mm Bore, 250mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822341008 Pneumatic Guided Cylinder - , 40mm Bore, 250mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822341008
Availability: OutOfStock

Part Number : 0822341008

Availability: Sold out

Detailed Description
Specifications

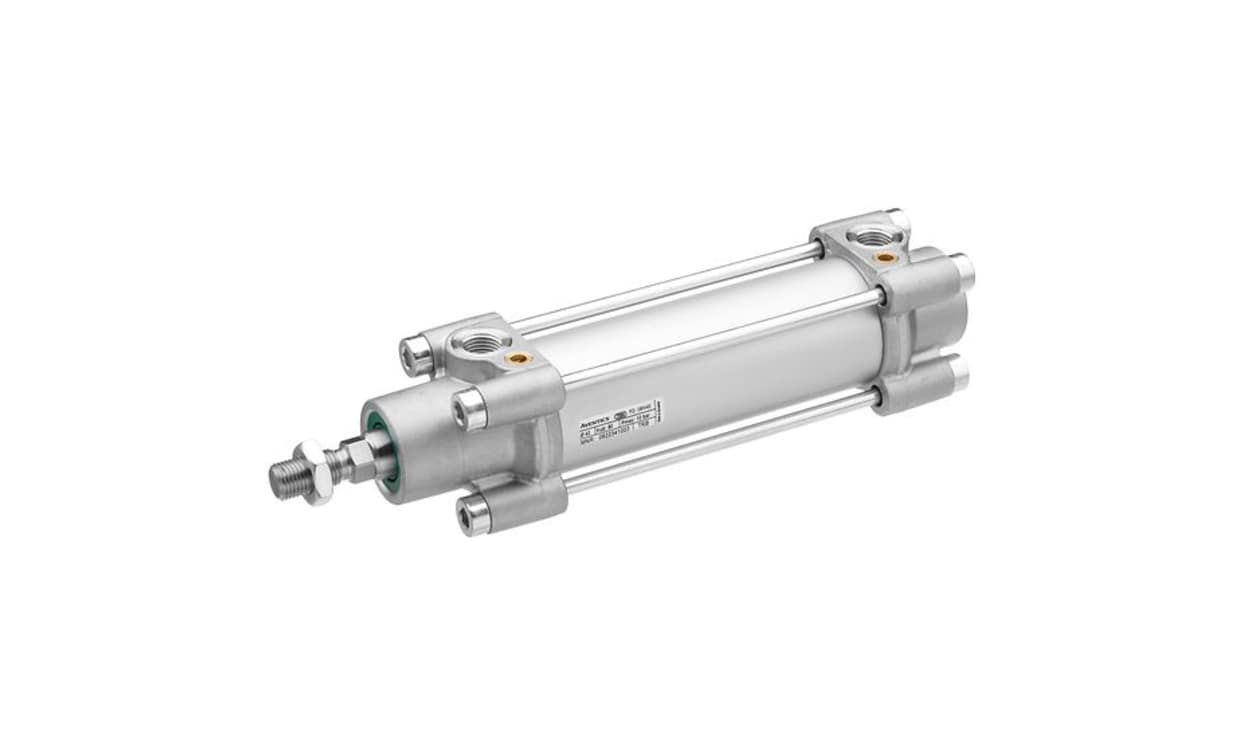

The Aventics tie rod cylinder from the series TRB, adhering to ISO 15552 standards, is engineered for heavy-duty applications across various industries such as automotive, steel, and mining. This robust cylinder design accommodates demanding environments, with its double-acting functionality providing efficient operation. The piston boasts a standard diameter of 40 mm, complemented by adjustable pneumatic cushioning to optimise performance and extend service life. With environmental considerations, this cylinder is also available in an ATEX-certified variant, ensuring safety in potentially explosive atmospheres. Ideal for applications requiring reliability and durability, this product guarantees high-performance with a maximum working pressure of 10 bar, making it an indispensable solution for industrial automation.

Designed for heavy-duty utilisation in demanding industrial environments
Double-acting functional principle enhances operational efficiency
Pneumatic adjustable cushioning optimises performance and reduces wear
Available in an ATEX-certified variant for increased safety in hazardous locations
Manufactured with durable materials to ensure longevity and reliability
Wide operating temperature range suited for harsh conditions
Supports a range of piston movements with optimised force output
Compact yet powerful design aids in space-saving configurations

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822341008
Stroke	250mm
Action	Double
Bore	40mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
