AVENTICS 0822343001 Pneumatic Piston Rod Cylinder - , 63mm Bore, 25mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822343001 Pneumatic Piston Rod Cylinder - , 63mm Bore, 25mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822343001
Availability: OutOfStock

Part Number : 0822343001

Availability: Sold out

Detailed Description
Specifications

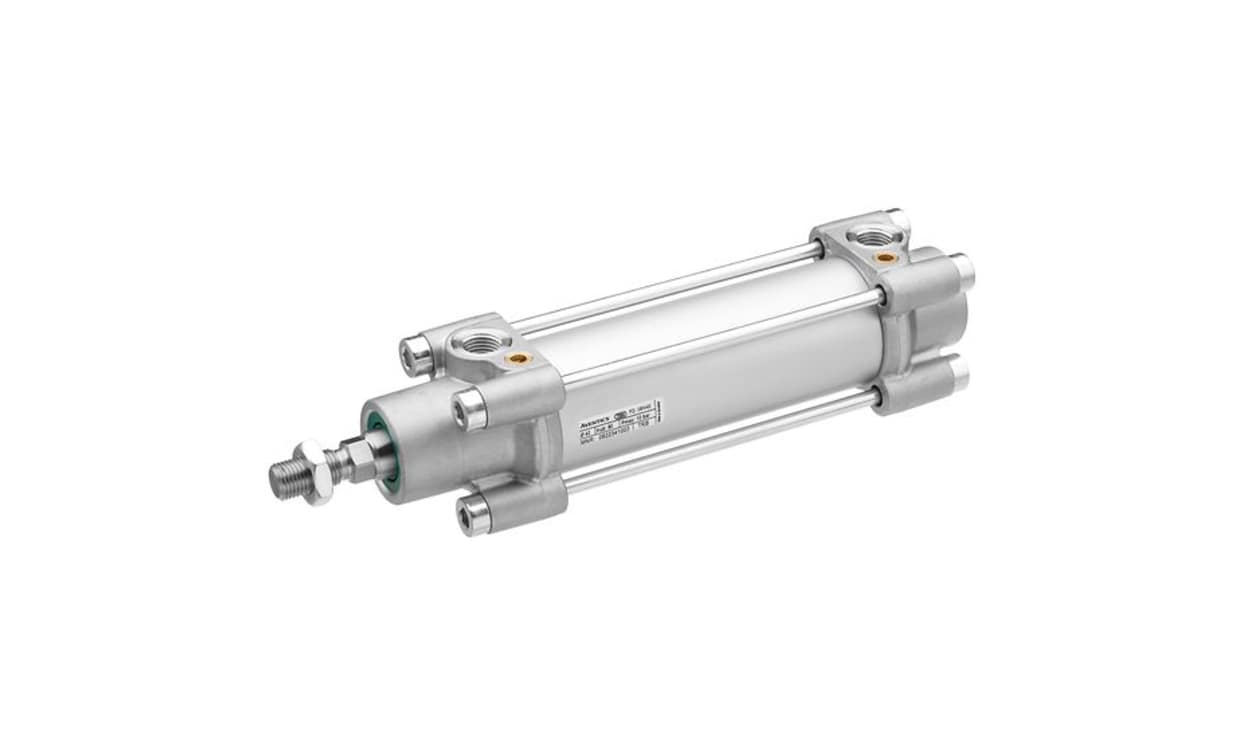

The Aventics Tie Rod Cylinder, ISO 15552, Series TRB is engineered for exceptional performance in demanding industrial applications. It stands out with its double-acting functional principle, ensuring reliable operation in heavy-duty conditions, such as those found in the automotive and mining sectors. The cylinder is constructed to meet industry standards, offering robust environmental resistance, including ATEX certifications for potentially explosive atmospheres. Its pneumatic adjustable cushioning and magnetic piston enhance precision and control, making it an ideal choice for tasks requiring meticulous handling.

Robust materials ensure long lasting durability under demanding conditions
Superior environmental resistance to temperature fluctuations
Versatile stroke lengths to cater to a wide range of machinery

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822343001
Action	Double
Stroke	25mm
Bore	63mm
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
