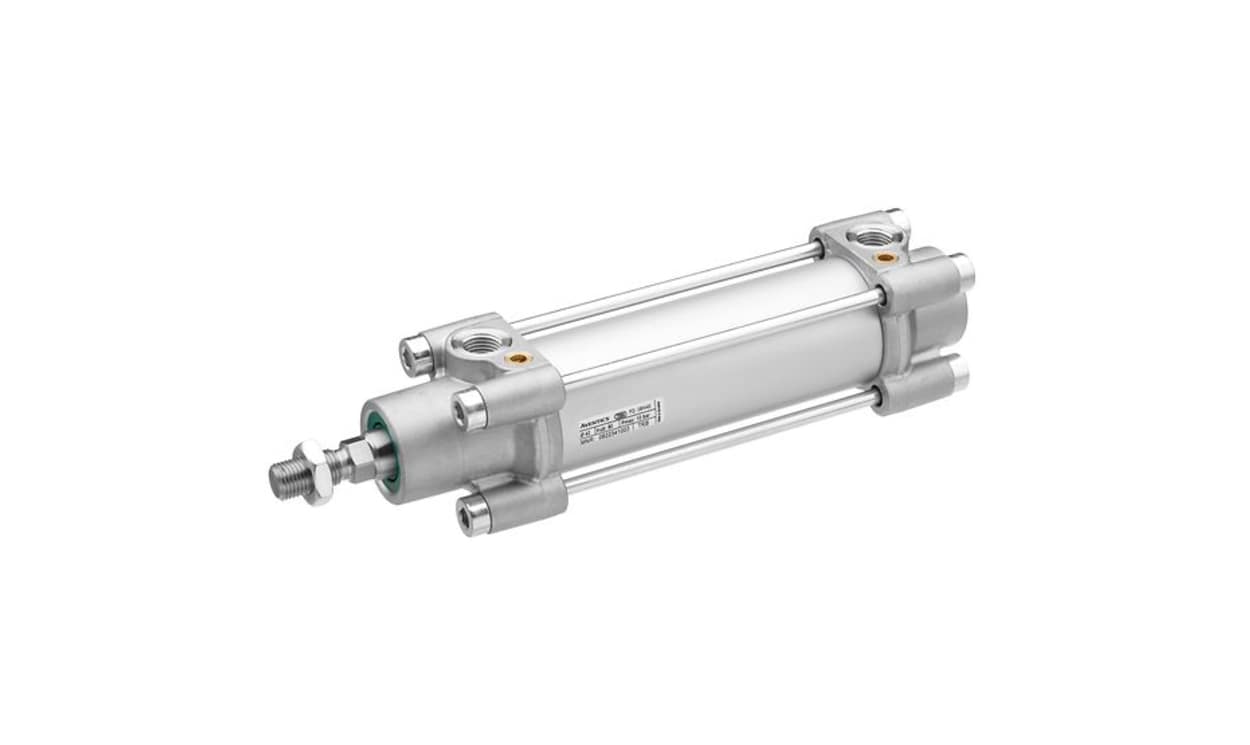

AVENTICS 0822344003 Pneumatic Piston Rod Cylinder - , 80mm Bore, 80mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822344003 Pneumatic Piston Rod Cylinder - , 80mm Bore, 80mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822344003
Availability: OutOfStock

Part Number : 0822344003

Availability: Sold out

Detailed Description
Specifications

The Aventics TRB tie rod cylinder ISO 15552 is engineered for high-performance applications in demanding industrial environments. This double-acting cylinder boasts a robust design ideal for sectors such as automotive, steel, and heavy-duty machinery. With its advanced pneumatic adjustable cushioning, it ensures smooth operation and precision in motion, catering specifically to the rigorous standards required in industrial automation. The use of premium materials such as stainless steel and chrome-plated components enhances its durability, while the versatile stroke options, reaching up to 2800 mm, provide flexibility for various operational needs. Additionally, this cylinder accommodates a wide temperature range, making it suitable for diverse ambient conditions. It adheres to ISO 15552 standards, ensuring compatibility and reliability across numerous applications.

Designed for demanding industrial environments
Double-acting operational principle for enhanced efficiency
Pneumatic adjustable cushioning for smooth functionality
Constructed with high-quality materials for long-lasting performance
Versatile stroke lengths up to 2800 mm for application flexibility
Wide operating temperature range to suit various conditions
Meets ISO 15552 standards for compatibility and reliability
ATEX optional certification for safety in explosive atmospheres

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822344003
Bore	80mm
Stroke	80mm
Action	Double
Port Connection	G 3/8
Pneumatic Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
