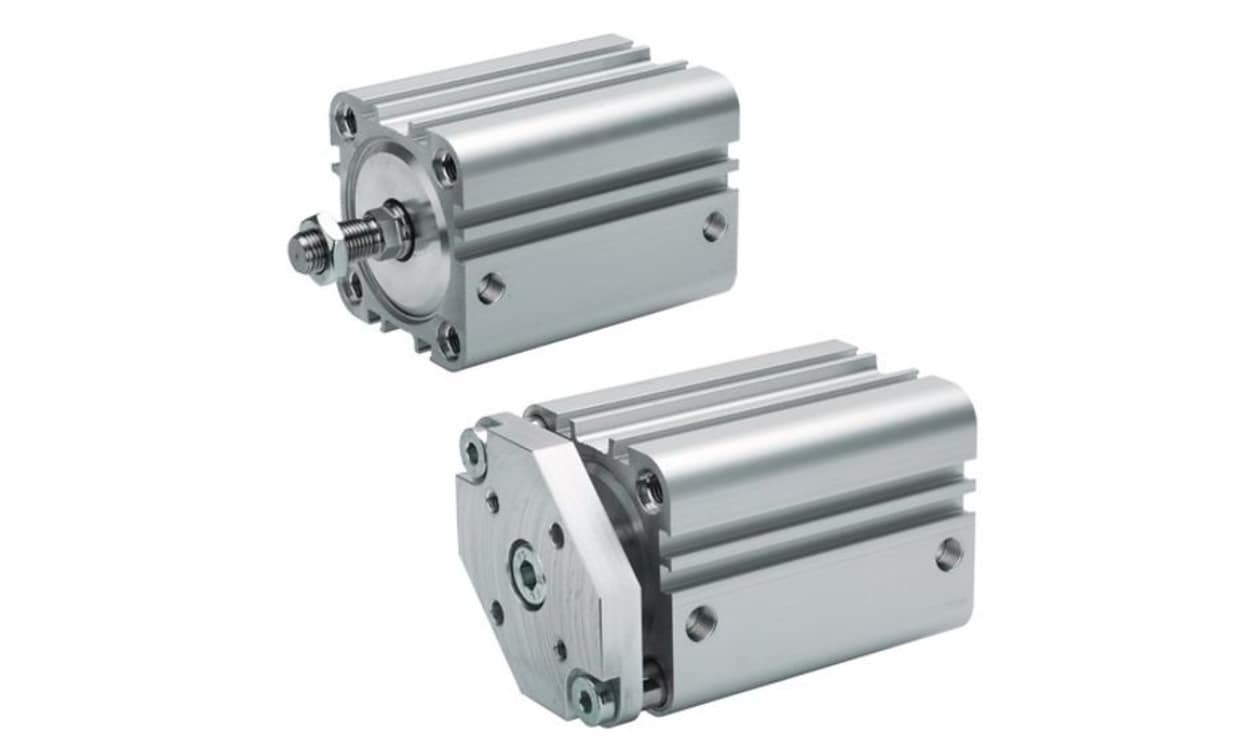

AVENTICS 0822392202 | Pneumatic Compact Cylinder | 25 mm Bore, 15 mm Stroke, KPZ Series

Name: AVENTICS 0822392202 | Pneumatic Compact Cylinder | 25 mm Bore, 15 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822392202
Availability: OutOfStock

Part Number : 0822392202

Where a 15 mm stroke is needed at 25 mm bore, the AVENTICS 0822392202 double-acting KPZ compact cylinder fits the requirement. M5 connections, elastic cushioning and a male piston rod thread complete the 0822392202 specification.

Bore 25 mm, stroke 15 mm, double-acting
Maximum operating pressure: 10 bar
Temperature range: -20 °C to +80 °C
Pneumatic and port connection: M5
Elastic cushioning
Male piston rod thread
Manufacturer series: KPZ

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder, from the acclaimed Series KPZ, offers exceptional performance and versatility for various industrial applications. Designed with precision, it adheres to the NFE 49004 standard, ensuring reliable operation across multiple environments. Boasting a double-acting functional principle, this cylinder delivers consistent power with both retracting and extracting forces to cater to dynamic operational needs. The KPZ cylinders are engineered with elastic cushioning and a magnetic piston, enhancing durability and efficiency. Furthermore, its robust construction includes high-quality materials such as stainless steel, aluminium, and polyurethane, ensuring longevity even in challenging conditions.

Complies with NFE 49004 standard for guaranteed reliability
Double-acting principle allows for efficient operation in both directions
Integrated elastic cushioning optimises performance and impact resistance
Magnetic piston simplifies the integration of sensing technology
Constructed from robust materials ensuring lasting service and durability
Versatile temperature range supports diverse industrial applications
Optional ATEX certification for enhanced safety in hazardous environments
Compact design facilitates easy installation within limited spaces
Utilises approved oils to maintain performance and reliability throughout its lifecycle

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822392202
Action	Double
Bore	25mm
Stroke	15mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS 0822392202 | Pneumatic Compact Cylinder | 25 mm Bore, 15 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822392202 Datasheet - 0822392202 A700000012564758
