AVENTICS 0822406310 Pneumatic Piston Rod Cylinder - , 16mm Bore, 4mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406310 Pneumatic Piston Rod Cylinder - , 16mm Bore, 4mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406310
Availability: OutOfStock

Part Number : 0822406310

Availability: Sold out

Detailed Description
Specifications

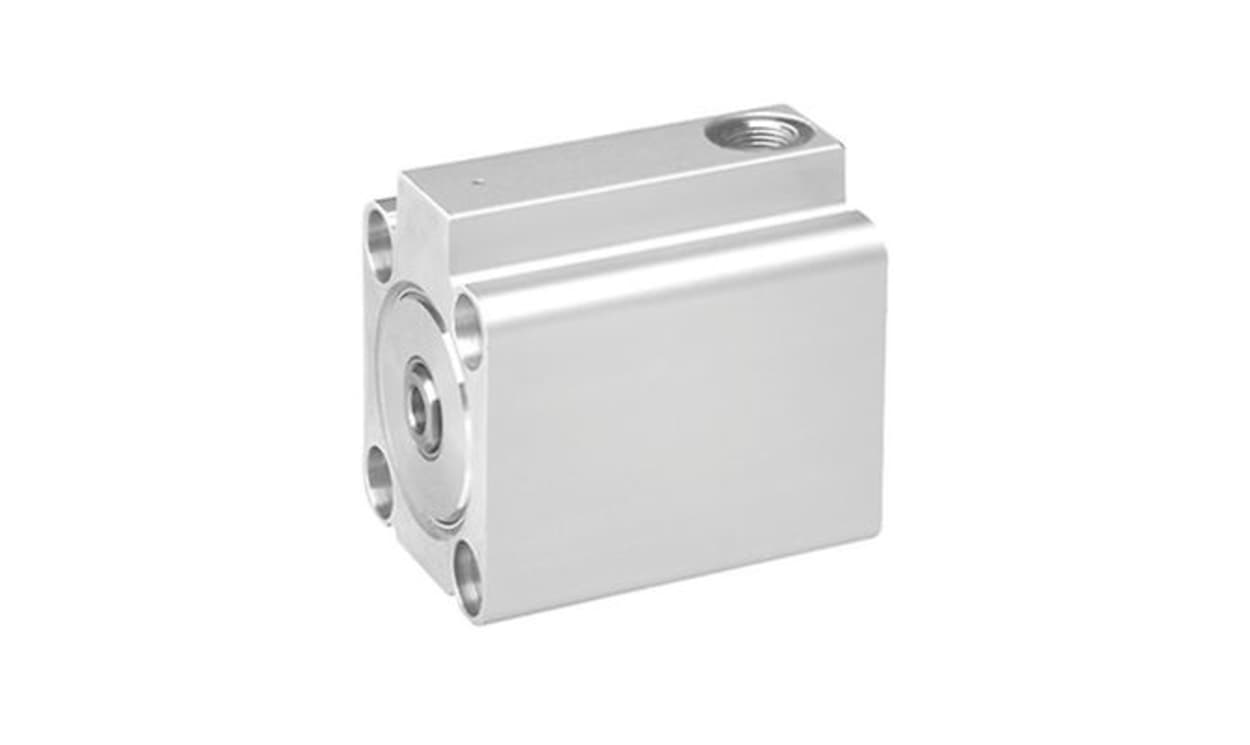

The Aventics short-stroke cylinder, Series KHZ, is expertly designed to deliver high performance in confined spaces, ensuring effortless and secure integration into machinery. With its compact build, it optimally utilises minimal installation space while maintaining outstanding efficiency and reliability. The cylinder features a single-acting design retracted without pressure, making it ideal for a range of industrial applications. It boasts an elastic cushioning mechanism that guarantees smooth operation and reduces wear over time. With a robust construction featuring durable materials, this cylinder is ready to withstand the demands of a wide array of environments, delivering precise and dependable operation.

Compact design enables easy fitting in tight spaces
Single-acting mechanism reduces energy consumption
Elastic cushioning enhances longevity and reduces impact
Constructed from high-quality materials for durability
Wide operational temperature range for versatility
Compatible with various machinery configurations

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406310
Bore	16mm
Stroke	4mm
Action	Single
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
