AVENTICS 0822406350 Pneumatic Piston Rod Cylinder - , 40mm Bore, 5mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406350 Pneumatic Piston Rod Cylinder - , 40mm Bore, 5mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406350
Availability: OutOfStock

Part Number : 0822406350

Availability: Sold out

Detailed Description
Specifications

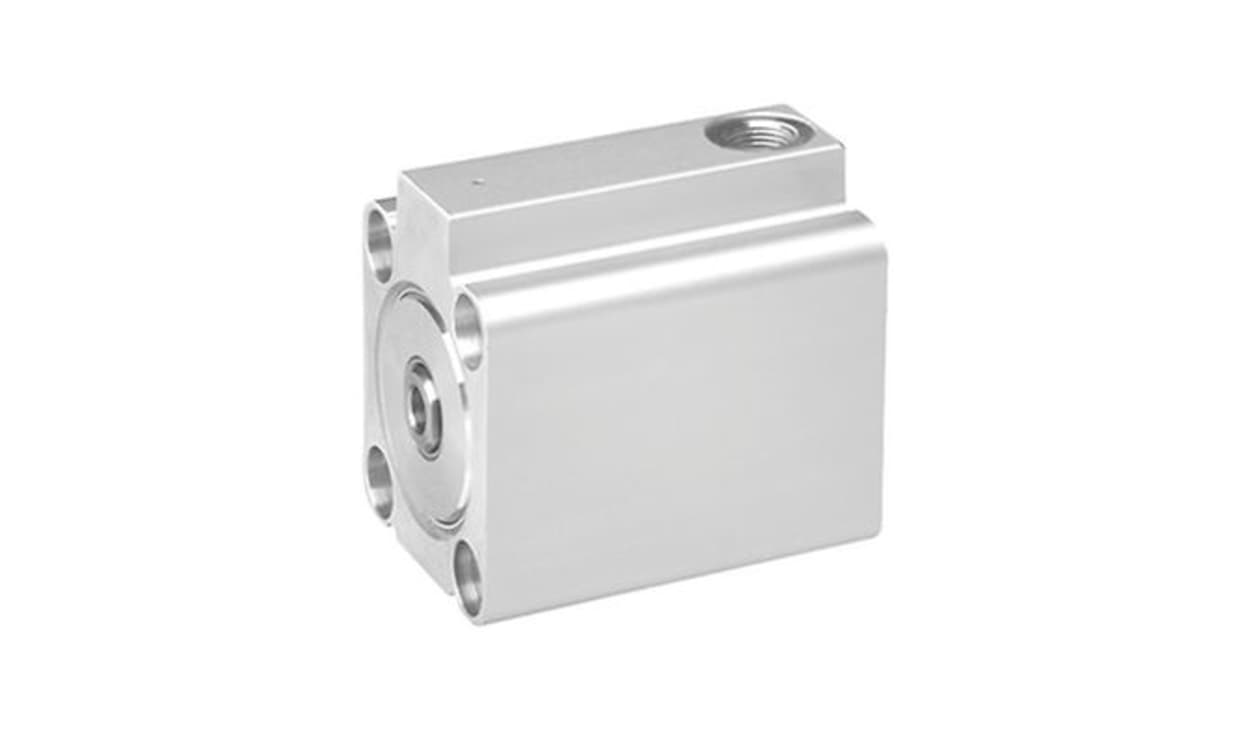

The Aventics Series KHZ short-stroke cylinder is designed to excel in confined spaces, making it an exceptional choice for industries where installation flexibility is paramount. With its compact dimensions, this cylinder ensures seamless integration into machinery while maintaining high performance and reliability. The single-acting functional principle allows for effective retraction without pressure, enhancing operational efficiency. Built to withstand varying environmental conditions, the Series KHZ features robust construction and standard industry requirements, ensuring long-lasting durability. Its technical specifications are tailored to meet the demands of industrial applications, delivering optimal performance even in challenging environments.

Optimised for tight installation spaces, providing versatility
Single-acting design allows for retraction without pressure
Constructed to meet standard industrial environmental requirements
Elastic cushioning improves impact absorption and reduces noise
Lightweight yet durable materials enhance overall efficiency
Wide operating temperature range supports various applications
Compatible with a variety of working pressures for flexibility
Smooth integration with existing machinery due to compact design
Approved oils and maintenance guidelines ensure reliability throughout the life cycle

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406350
Bore	40mm
Action	Single
Stroke	5mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
